tfCSurface.h File Reference

#include <tf_port_c.h>
#include <tfC_io.h>
#include <tfCStyle.h>

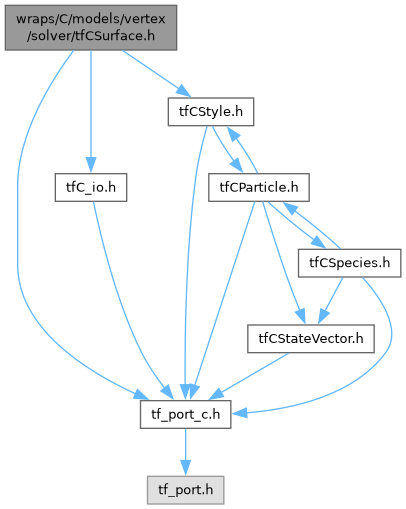

Include dependency graph for tfCSurface.h:

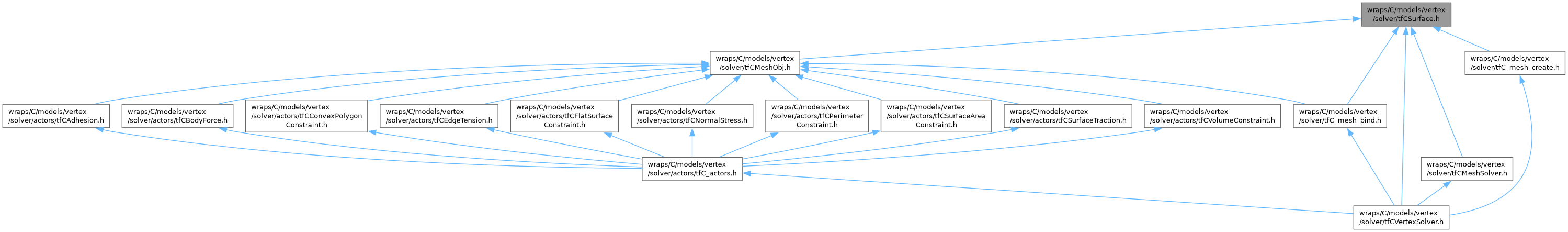

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	tfVertexSolverSurfaceTypeStyleSpec
	Surface type style definition in Tissue Forge C. More...
struct	tfVertexSolverSurfaceTypeSpec
	Surface type definition in Tissue Forge C. More...
struct	tfVertexSolverSurfaceHandleHandle
	Handle to a models::vertex::SurfaceHandle instance. More...
struct	tfVertexSolverSurfaceTypeHandle
	Handle to a models::vertex::SurfaceType instance. More...

Functions
struct tfVertexSolverSurfaceTypeSpec	tfVertexSolverSurfaceTypeSpec_init ()
	Get a default definition.
struct tfVertexSolverSurfaceTypeStyleSpec	tfVertexSolverSurfaceTypeStyleSpec_init ()
	Get a default definition.
HRESULT	tfVertexSolverSurfaceHandle_init (struct tfVertexSolverSurfaceHandleHandle *handle, int id)
	Initialize an instance.
HRESULT	tfVertexSolverSurfaceHandle_fromString (struct tfVertexSolverSurfaceHandleHandle *handle, const char *s)
	Create an instance from a JSON string representation.
HRESULT	tfVertexSolverSurfaceHandle_destroy (struct tfVertexSolverSurfaceHandleHandle *handle)
	Destroy an instance.
HRESULT	tfVertexSolverSurfaceHandle_getId (struct tfVertexSolverSurfaceHandleHandle *handle, int *objId)
	Get the id.
HRESULT	tfVertexSolverSurfaceHandle_definesBody (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *b, bool *result)
	Test whether a surface defines a body.
HRESULT	tfVertexSolverSurfaceHandle_definedByVertex (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, bool *result)
	Test whether a surface is defined by a vertex.
HRESULT	tfVertexSolverSurfaceHandle_objType (struct tfVertexSolverSurfaceHandleHandle *handle, unsigned int *label)
	Get the mesh object type.
HRESULT	tfVertexSolverSurfaceHandle_destroySurface (struct tfVertexSolverSurfaceHandleHandle *handle)
	Destroy the surface.
HRESULT	tfVertexSolverSurfaceHandle_destroySurfaces (struct tfVertexSolverSurfaceHandleHandle **handles, unsigned int numObjs)
	Destroy surfaces.
HRESULT	tfVertexSolverSurfaceHandle_destroySurfaceC (struct tfVertexSolverSurfaceHandleHandle *handle)
	Destroy an instance.
HRESULT	tfVertexSolverSurfaceHandle_validate (struct tfVertexSolverSurfaceHandleHandle *handle, bool *result)
	Validate the body.
HRESULT	tfVertexSolverSurfaceHandle_positionChanged (struct tfVertexSolverSurfaceHandleHandle *handle)
	Update internal data due to a change in position.
HRESULT	tfVertexSolverSurfaceHandle_str (struct tfVertexSolverSurfaceHandleHandle *handle, char **str, unsigned int *numChars)
	Get a summary string.
HRESULT	tfVertexSolverSurfaceHandle_toString (struct tfVertexSolverSurfaceHandleHandle *handle, char **str, unsigned int *numChars)
	Get a JSON string representation.
HRESULT	tfVertexSolverSurfaceHandle_addVertex (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v)
	Add a vertex.
HRESULT	tfVertexSolverSurfaceHandle_insertVertexAt (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, const int &idx)
	Insert a vertex at a location in the list of vertices.
HRESULT	tfVertexSolverSurfaceHandle_insertVertexBefore (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, struct tfVertexSolverVertexHandleHandle *before)
	Insert a vertex before another vertex.
HRESULT	tfVertexSolverSurfaceHandle_insertVertexBetween (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *toInsert, struct tfVertexSolverVertexHandleHandle *v1, struct tfVertexSolverVertexHandleHandle *v2)
	Insert a vertex between two vertices.
HRESULT	tfVertexSolverSurfaceHandle_removeVertex (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v)
	Remove a vertex.
HRESULT	tfVertexSolverSurfaceHandle_replaceVertexAt (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *toInsert, const int &idx)
	Replace a vertex at a location in the list of vertices.
HRESULT	tfVertexSolverSurfaceHandle_replaceVertexWith (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *toInsert, struct tfVertexSolverVertexHandleHandle *toRemove)
	Replace a vertex with another vertex.
HRESULT	tfVertexSolverSurfaceHandle_addBody (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *b)
	Add a body.
HRESULT	tfVertexSolverSurfaceHandle_removeBody (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *b)
	Remove a body.
HRESULT	tfVertexSolverSurfaceHandle_replaceBodyAt (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *toInsert, const int &idx)
	Replace a body at a location in the list of bodies.
HRESULT	tfVertexSolverSurfaceHandle_replaceBodyWith (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *toInsert, struct tfVertexSolverBodyHandleHandle *toRemove)
	Replace a body with another body.
HRESULT	tfVertexSolverSurfaceHandle_refreshBodies (struct tfVertexSolverSurfaceHandleHandle *handle)
	Refresh internal ordering of defined bodies.
HRESULT	tfVertexSolverSurfaceHandle_getType (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceTypeHandle *stype)
	Get the surface type.
HRESULT	tfVertexSolverSurfaceHandle_become (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceTypeHandle *stype)
	Become a different type.
HRESULT	tfVertexSolverSurfaceHandle_getBodies (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle **objs, int *numObjs)
	Get the bodies defined by the surface.
HRESULT	tfVertexSolverSurfaceHandle_getVertices (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle **objs, int *numObjs)
	Get the vertices that define the surface.
HRESULT	tfVertexSolverSurfaceHandle_findVertex (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *dir, struct tfVertexSolverVertexHandleHandle *result)
	Find a vertex that defines this surface.
HRESULT	tfVertexSolverSurfaceHandle_findBody (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *dir, struct tfVertexSolverBodyHandleHandle *result)
	Find a body that this surface defines.
HRESULT	tfVertexSolverSurfaceHandle_neighborVertices (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, struct tfVertexSolverVertexHandleHandle *v1, struct tfVertexSolverVertexHandleHandle *v2)
	Connected vertices on the same surface.
HRESULT	tfVertexSolverSurfaceHandle_neighborSurfaces (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle **objs, int *numObjs)
	Connected surfaces on the same body.
HRESULT	tfVertexSolverSurfaceHandle_connectedSurfacesS (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle **verts, unsigned int numVerts, struct tfVertexSolverSurfaceHandleHandle **objs, int *numObjs)
	Surfaces that share at least one vertex in a set of vertices.
HRESULT	tfVertexSolverSurfaceHandle_connectedSurfaces (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle **objs, int *numObjs)
	Surfaces that share at least one vertex.
HRESULT	tfVertexSolverSurfaceHandle_connectingVertices (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle *other, struct tfVertexSolverVertexHandleHandle **objs, int *numObjs)
	Vertices defining this and another surface.
HRESULT	tfVertexSolverSurfaceHandle_contiguousVertexLabels (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle *other, unsigned int **labels, int *numLabels)
	Get the integer labels of the contiguous vertices that this surface shares with another surface.
HRESULT	tfVertexSolverSurfaceHandle_sharedContiguousVertices (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle *other, unsigned int edgeLabel, struct tfVertexSolverVertexHandleHandle **objs, int *numObjs)
	Get the vertices of a contiguous shared edge with another surface.
HRESULT	tfVertexSolverSurfaceHandle_getNormal (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t **result)
	Get the surface normal.
HRESULT	tfVertexSolverSurfaceHandle_getUnnormalizedNormal (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t **result)
	Get the surface unnormalized normal.
HRESULT	tfVertexSolverSurfaceHandle_getCentroid (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t **result)
	Get the centroid.
HRESULT	tfVertexSolverSurfaceHandle_getVelocity (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t **result)
	Get the velocity, calculated as the velocity of the centroid.
HRESULT	tfVertexSolverSurfaceHandle_getArea (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *result)
	Get the area.
HRESULT	tfVertexSolverSurfaceHandle_getPerimeter (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *result)
	Get the perimeter.
HRESULT	tfVertexSolverSurfaceHandle_getDensity (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *result)
	Get the mass density; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceHandle_setDensity (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t density)
	Set the mass density; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceHandle_getMass (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *result)
	Get the mass; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceHandle_volumeSense (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *body, tfFloatP_t *result)
	Get the sign of the volume contribution to a body that this surface contributes.
HRESULT	tfVertexSolverSurfaceHandle_getVolumeContr (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *body, tfFloatP_t *result)
	Get the volume that this surface contributes to a body.
HRESULT	tfVertexSolverSurfaceHandle_getOutwardNormal (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverBodyHandleHandle *body, tfFloatP_t **result)
	Get the outward facing normal w.r.t. a body.
HRESULT	tfVertexSolverSurfaceHandle_getVertexArea (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, tfFloatP_t *result)
	Get the area that a vertex contributes to this surface.
HRESULT	tfVertexSolverSurfaceHandle_getVertexMass (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v, tfFloatP_t *result)
	Get the mass contribution of a vertex to this surface; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceHandle_hasStyle (struct tfVertexSolverSurfaceHandleHandle *handle, bool *result)
	Test whether the surface has a style.
HRESULT	tfVertexSolverSurfaceHandle_getStyle (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfRenderingStyleHandle *result)
	Get the surface style.
HRESULT	tfVertexSolverSurfaceHandle_setStyle (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfRenderingStyleHandle *s)
	Set the surface style.
HRESULT	tfVertexSolverSurfaceHandle_normalDistance (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *pos, tfFloatP_t *result)
	Get the normal distance to a point; negative distance means that the point is on the inner side.
HRESULT	tfVertexSolverSurfaceHandle_isOutside (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *pos, bool *result)
	Test whether a point is on the outer side.
HRESULT	tfVertexSolverSurfaceHandle_contains (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *pos, bool *result, struct tfVertexSolverVertexHandleHandle *v0, struct tfVertexSolverVertexHandleHandle *v1)
	Test whether the surface contains a point.
HRESULT	tfVertexSolverSurfaceHandle_merge (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverSurfaceHandleHandle *toRemove, tfFloatP_t *lenCfs, unsigned int numLenCfs)
	Merge with a surface. The passed surface is destroyed.
HRESULT	tfVertexSolverSurfaceHandle_extend (struct tfVertexSolverSurfaceHandleHandle *handle, unsigned int vertIdxStart, tfFloatP_t *pos, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Create a surface from two vertices and a position.
HRESULT	tfVertexSolverSurfaceHandle_extrude (struct tfVertexSolverSurfaceHandleHandle *handle, unsigned int vertIdxStart, tfFloatP_t normLen, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Create a surface from two vertices of a surface in a mesh by extruding along the normal of the surface.
HRESULT	tfVertexSolverSurfaceHandle_splitBy (struct tfVertexSolverSurfaceHandleHandle *handle, struct tfVertexSolverVertexHandleHandle *v1, struct tfVertexSolverVertexHandleHandle *v2, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Split into two surfaces.
HRESULT	tfVertexSolverSurfaceHandle_splitHow (struct tfVertexSolverSurfaceHandleHandle *handle, tfFloatP_t *cp_pos, tfFloatP_t *cp_norm, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Split into two surfaces.
HRESULT	tfVertexSolverSurfaceType_init (struct tfVertexSolverSurfaceTypeHandle *handle)
	Initialize a new instance.
HRESULT	tfVertexSolverSurfaceType_initD (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfVertexSolverSurfaceTypeSpec sdef)
	Initialize an instance from a definition.
HRESULT	tfVertexSolverSurfaceType_fromString (struct tfVertexSolverSurfaceTypeHandle *handle, const char *str)
	Create from a JSON string representation.
HRESULT	tfVertexSolverSurfaceType_objType (struct tfVertexSolverSurfaceTypeHandle *handle, unsigned int *label)
	Get the mesh object type.
HRESULT	tfVertexSolverSurfaceType_str (struct tfVertexSolverSurfaceTypeHandle *handle, char **str, unsigned int *numChars)
	Get a summary string.
HRESULT	tfVertexSolverSurfaceType_toString (struct tfVertexSolverSurfaceTypeHandle *handle, char **str, unsigned int *numChars)
	Get a JSON string representation.
HRESULT	tfVertexSolverSurfaceType_registerType (struct tfVertexSolverSurfaceTypeHandle *handle)
	Registers a type with the engine.
HRESULT	tfVertexSolverSurfaceType_isRegistered (struct tfVertexSolverSurfaceTypeHandle *handle, bool *result)
	Tests whether this type is registered.
HRESULT	tfVertexSolverSurfaceType_getName (struct tfVertexSolverSurfaceTypeHandle *handle, char **str, unsigned int *numChars)
	Name of this surface type.
HRESULT	tfVertexSolverSurfaceType_setName (struct tfVertexSolverSurfaceTypeHandle *handle, const char *str)
	Set the name of this surface type.
HRESULT	tfVertexSolverSurfaceType_getStyle (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfRenderingStyleHandle *style)
	Get the style of the surface type.
HRESULT	tfVertexSolverSurfaceType_getDensity (struct tfVertexSolverSurfaceTypeHandle *handle, tfFloatP_t *result)
	Get the density of the surface type; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceType_setDensity (struct tfVertexSolverSurfaceTypeHandle *handle, tfFloatP_t result)
	Set the density of the surface type; only used in 2D simulation.
HRESULT	tfVertexSolverSurfaceType_getInstances (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfVertexSolverSurfaceHandleHandle **objs, unsigned int *numObjs)
	Get the list of instances that belong to this type.
HRESULT	tfVertexSolverSurfaceType_getInstanceIds (struct tfVertexSolverSurfaceTypeHandle *handle, int **ids, unsigned int *numObjs)
	Get the list of instances ids that belong to this type.
HRESULT	tfVertexSolverSurfaceType_createSurfaceV (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfVertexSolverVertexHandleHandle **vertices, unsigned int numVerts, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a surface of this type from a set of vertices.
HRESULT	tfVertexSolverSurfaceType_createSurfaceP (struct tfVertexSolverSurfaceTypeHandle *handle, tfFloatP_t **positions, unsigned int numPositions, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a surface of this type from a set of positions.
HRESULT	tfVertexSolverSurfaceType_createSurfaceIO (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfIoThreeDFFaceDataHandle *face, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a surface of this type from a face.
HRESULT	tfVertexSolverSurfaceType_createSurfaceVA (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfVertexSolverVertexHandleHandle ***vertices, unsigned int numSurfaces, unsigned int *numVerts, struct tfVertexSolverSurfaceHandleHandle **newObjs)
	Construct a surface of this type from a set of vertices.
HRESULT	tfVertexSolverSurfaceType_createSurfacePA (struct tfVertexSolverSurfaceTypeHandle *handle, tfFloatP_t ***spositions, unsigned int numSurfaces, unsigned int *numPositions, struct tfVertexSolverSurfaceHandleHandle **newObjs)
	Construct a surface of this type from a set of positions.
HRESULT	tfVertexSolverSurfaceType_createSurfaceIOA (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfIoThreeDFFaceDataHandle **faces, unsigned int numSurfaces, struct tfVertexSolverSurfaceHandleHandle **newObjs)
	Construct a surface of this type from a face.
HRESULT	tfVertexSolverSurfaceType_nPolygon (struct tfVertexSolverSurfaceTypeHandle *handle, unsigned int n, tfFloatP_t *center, tfFloatP_t radius, tfFloatP_t *ax1, tfFloatP_t *ax2, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a polygon with n vertices circumscribed on a circle.
HRESULT	tfVertexSolverSurfaceType_replace (struct tfVertexSolverSurfaceTypeHandle *handle, struct tfVertexSolverVertexHandleHandle *toReplace, tfFloatP_t *lenCfs, unsigned int numLenCfs, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Replace a vertex with a surface. Vertices are created for the surface along every destroyed edge.
HRESULT	tfVertexSolverCreateSurfaceByVertices (struct tfVertexSolverVertexHandleHandle **verts, unsigned int numVerts, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a surface from a set of vertices.
HRESULT	tfVertexSolverCreateSurfaceByIOData (struct tfIoThreeDFFaceDataHandle *face, struct tfVertexSolverSurfaceHandleHandle *newObj)
	Construct a surface from a face.
HRESULT	tfVertexSolverFindSurfaceTypeFromName (const char *name, struct tfVertexSolverSurfaceTypeHandle *result)
	Get a registered type by name.
HRESULT	tfVertexSolverBindSurfaceTypeAdhesion (struct tfVertexSolverSurfaceTypeHandle **stypes, struct tfVertexSolverSurfaceTypeSpec *sdefs, unsigned int numTypes)
	Bind adhesion for all types with matching specification.

Function Documentation

tfVertexSolverBindSurfaceTypeAdhesion()

HRESULT tfVertexSolverBindSurfaceTypeAdhesion	(	struct tfVertexSolverSurfaceTypeHandle **	stypes,
		struct tfVertexSolverSurfaceTypeSpec *	sdefs,
		unsigned int	numTypes )

Bind adhesion for all types with matching specification.

Parameters

stypes	surface types to bind
sdefs	surface type definitions
numTypes	number of types

tfVertexSolverCreateSurfaceByIOData()

HRESULT tfVertexSolverCreateSurfaceByIOData	(	struct tfIoThreeDFFaceDataHandle *	face,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a surface from a face.

Parameters

face	face data
newObj	newly created object

tfVertexSolverCreateSurfaceByVertices()

HRESULT tfVertexSolverCreateSurfaceByVertices	(	struct tfVertexSolverVertexHandleHandle **	verts,
		unsigned int	numVerts,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a surface from a set of vertices.

Parameters

verts	set of vertices
numVerts	number of vertices
newObj	newly created object

tfVertexSolverFindSurfaceTypeFromName()

HRESULT tfVertexSolverFindSurfaceTypeFromName	(	const char *	name,
		struct tfVertexSolverSurfaceTypeHandle *	result )

Get a registered type by name.

Parameters

name	name of type
result	type

tfVertexSolverSurfaceHandle_addBody()

HRESULT tfVertexSolverSurfaceHandle_addBody	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	b )

Add a body.

Parameters

handle	populated handle
b	body to add

tfVertexSolverSurfaceHandle_addVertex()

HRESULT tfVertexSolverSurfaceHandle_addVertex	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v )

Add a vertex.

Parameters

handle	populated handle
v	vertex to add

tfVertexSolverSurfaceHandle_become()

HRESULT tfVertexSolverSurfaceHandle_become	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceTypeHandle *	stype )

Become a different type.

Parameters

handle	populated handle
stype	type to become

tfVertexSolverSurfaceHandle_connectedSurfaces()

HRESULT tfVertexSolverSurfaceHandle_connectedSurfaces	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle **	objs,
		int *	numObjs )

Surfaces that share at least one vertex.

Parameters

handle	populated handle
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_connectedSurfacesS()

HRESULT tfVertexSolverSurfaceHandle_connectedSurfacesS	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle **	verts,
		unsigned int	numVerts,
		struct tfVertexSolverSurfaceHandleHandle **	objs,
		int *	numObjs )

Surfaces that share at least one vertex in a set of vertices.

Parameters

handle	populated handle
verts	vertices
numVerts	number of vertices
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_connectingVertices()

HRESULT tfVertexSolverSurfaceHandle_connectingVertices	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle *	other,
		struct tfVertexSolverVertexHandleHandle **	objs,
		int *	numObjs )

Vertices defining this and another surface.

Parameters

handle
other	another surface
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_contains()

HRESULT tfVertexSolverSurfaceHandle_contains	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	pos,
		bool *	result,
		struct tfVertexSolverVertexHandleHandle *	v0,
		struct tfVertexSolverVertexHandleHandle *	v1 )

Test whether the surface contains a point.

Parameters

handle	populated handle
pos	position of the point
result	result of the test
v0	a vertex of the nearest edge
v1	a vertex of the nearest edge

tfVertexSolverSurfaceHandle_contiguousVertexLabels()

HRESULT tfVertexSolverSurfaceHandle_contiguousVertexLabels	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle *	other,
		unsigned int **	labels,
		int *	numLabels )

Get the integer labels of the contiguous vertices that this surface shares with another surface.

Parameters

handle	populated handle
other	another surface
labels	edge labels
numLabels	number of edge labels

tfVertexSolverSurfaceHandle_definedByVertex()

HRESULT tfVertexSolverSurfaceHandle_definedByVertex	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		bool *	result )

Test whether a surface is defined by a vertex.

Parameters

handle	populated handle
v	vertex
result	result of test

tfVertexSolverSurfaceHandle_definesBody()

HRESULT tfVertexSolverSurfaceHandle_definesBody	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	b,
		bool *	result )

Test whether a surface defines a body.

Parameters

handle	populated handle
b	body
result	result of test

tfVertexSolverSurfaceHandle_destroy()

HRESULT tfVertexSolverSurfaceHandle_destroy

(

struct tfVertexSolverSurfaceHandleHandle *

handle

)

Destroy an instance.

Parameters

handle

populated handle

tfVertexSolverSurfaceHandle_destroySurface()

HRESULT tfVertexSolverSurfaceHandle_destroySurface

(

struct tfVertexSolverSurfaceHandleHandle *

handle

)

Destroy the surface.

Parameters

handle

populated handle

tfVertexSolverSurfaceHandle_destroySurfaceC()

HRESULT tfVertexSolverSurfaceHandle_destroySurfaceC

(

struct tfVertexSolverSurfaceHandleHandle *

handle

)

Destroy an instance.

Any resulting vertices without a surface are also destroyed.

Parameters

handle

populated handle

tfVertexSolverSurfaceHandle_destroySurfaces()

HRESULT tfVertexSolverSurfaceHandle_destroySurfaces	(	struct tfVertexSolverSurfaceHandleHandle **	handles,
		unsigned int	numObjs )

Destroy surfaces.

Parameters

handles	populated handles
numObjs	number of objects to destroy

tfVertexSolverSurfaceHandle_extend()

HRESULT tfVertexSolverSurfaceHandle_extend	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		unsigned int	vertIdxStart,
		tfFloatP_t *	pos,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Create a surface from two vertices and a position.

Parameters

handle	populated handle
vertIdxStart	index of first vertex
pos	position of new vertex
newObj	newly created surface

tfVertexSolverSurfaceHandle_extrude()

HRESULT tfVertexSolverSurfaceHandle_extrude	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		unsigned int	vertIdxStart,
		tfFloatP_t	normLen,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Create a surface from two vertices of a surface in a mesh by extruding along the normal of the surface.

Parameters

handle	populated handle
vertIdxStart	index of first vertex
normLen	length along surface normal by which to extrude
newObj	newly created surface

tfVertexSolverSurfaceHandle_findBody()

HRESULT tfVertexSolverSurfaceHandle_findBody	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	dir,
		struct tfVertexSolverBodyHandleHandle *	result )

Find a body that this surface defines.

Parameters

handle
dir	direction to look with respect to the centroid
result	body

tfVertexSolverSurfaceHandle_findVertex()

HRESULT tfVertexSolverSurfaceHandle_findVertex	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	dir,
		struct tfVertexSolverVertexHandleHandle *	result )

Find a vertex that defines this surface.

Parameters

handle	populated handle
dir	direction to look with respect to the centroid
result	vertex

tfVertexSolverSurfaceHandle_fromString()

HRESULT tfVertexSolverSurfaceHandle_fromString	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		const char *	s )

Create an instance from a JSON string representation.

Parameters

handle	handle to populate
s	JSON string

tfVertexSolverSurfaceHandle_getArea()

HRESULT tfVertexSolverSurfaceHandle_getArea	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	result )

Get the area.

Parameters

handle	populated handle
result	area

tfVertexSolverSurfaceHandle_getBodies()

HRESULT tfVertexSolverSurfaceHandle_getBodies	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle **	objs,
		int *	numObjs )

Get the bodies defined by the surface.

Parameters

handle	populated handle
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_getCentroid()

HRESULT tfVertexSolverSurfaceHandle_getCentroid	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t **	result )

Get the centroid.

Parameters

handle	populated handle
result	centroid

tfVertexSolverSurfaceHandle_getDensity()

HRESULT tfVertexSolverSurfaceHandle_getDensity	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	result )

Get the mass density; only used in 2D simulation.

Parameters

handle	populated handle
result	mass density

tfVertexSolverSurfaceHandle_getId()

HRESULT tfVertexSolverSurfaceHandle_getId	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		int *	objId )

Get the id.

Parameters

handle	populated handle
objId	object id

tfVertexSolverSurfaceHandle_getMass()

HRESULT tfVertexSolverSurfaceHandle_getMass	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	result )

Get the mass; only used in 2D simulation.

Parameters

handle	populated handle
result	mass

tfVertexSolverSurfaceHandle_getNormal()

HRESULT tfVertexSolverSurfaceHandle_getNormal	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t **	result )

Get the surface normal.

Parameters

handle	populated handle
result	surface normal

tfVertexSolverSurfaceHandle_getOutwardNormal()

HRESULT tfVertexSolverSurfaceHandle_getOutwardNormal	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	body,
		tfFloatP_t **	result )

Get the outward facing normal w.r.t. a body.

Parameters

handle	populated handle
body	a body
result	normal

tfVertexSolverSurfaceHandle_getPerimeter()

HRESULT tfVertexSolverSurfaceHandle_getPerimeter	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	result )

Get the perimeter.

Parameters

handle	populated handle
result	perimeter

tfVertexSolverSurfaceHandle_getStyle()

HRESULT tfVertexSolverSurfaceHandle_getStyle	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfRenderingStyleHandle *	result )

Get the surface style.

Parameters

handle	populated handle
result	surface style

tfVertexSolverSurfaceHandle_getType()

HRESULT tfVertexSolverSurfaceHandle_getType	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceTypeHandle *	stype )

Get the surface type.

Parameters

handle	populated handle
stype	surface type

tfVertexSolverSurfaceHandle_getUnnormalizedNormal()

HRESULT tfVertexSolverSurfaceHandle_getUnnormalizedNormal	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t **	result )

Get the surface unnormalized normal.

Parameters

handle	populated handle
result	surface unnormalized normal

tfVertexSolverSurfaceHandle_getVelocity()

HRESULT tfVertexSolverSurfaceHandle_getVelocity	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t **	result )

Get the velocity, calculated as the velocity of the centroid.

Parameters

handle	populated handle
result	velocity

tfVertexSolverSurfaceHandle_getVertexArea()

HRESULT tfVertexSolverSurfaceHandle_getVertexArea	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		tfFloatP_t *	result )

Get the area that a vertex contributes to this surface.

Parameters

handle	populated handle
v	a vertex
result	area contribution

tfVertexSolverSurfaceHandle_getVertexMass()

HRESULT tfVertexSolverSurfaceHandle_getVertexMass	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		tfFloatP_t *	result )

Get the mass contribution of a vertex to this surface; only used in 2D simulation.

Parameters

populated	handle
v	a vertex
result	mass contribution

tfVertexSolverSurfaceHandle_getVertices()

HRESULT tfVertexSolverSurfaceHandle_getVertices	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle **	objs,
		int *	numObjs )

Get the vertices that define the surface.

Parameters

handle	populated handle
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_getVolumeContr()

HRESULT tfVertexSolverSurfaceHandle_getVolumeContr	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	body,
		tfFloatP_t *	result )

Get the volume that this surface contributes to a body.

Parameters

handle	populated handle
body	a body
result	volume contribution

tfVertexSolverSurfaceHandle_hasStyle()

HRESULT tfVertexSolverSurfaceHandle_hasStyle	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		bool *	result )

Test whether the surface has a style.

Parameters

handle	populated handle
result	result of test

tfVertexSolverSurfaceHandle_init()

HRESULT tfVertexSolverSurfaceHandle_init	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		int	id )

Initialize an instance.

Parameters

handle	handle to populate
id	object id

tfVertexSolverSurfaceHandle_insertVertexAt()

HRESULT tfVertexSolverSurfaceHandle_insertVertexAt	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		const int &	idx )

Insert a vertex at a location in the list of vertices.

Parameters

handle	populated handle
v	vertex to insert
idx	location for insertion

tfVertexSolverSurfaceHandle_insertVertexBefore()

HRESULT tfVertexSolverSurfaceHandle_insertVertexBefore	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		struct tfVertexSolverVertexHandleHandle *	before )

Insert a vertex before another vertex.

Parameters

handle	populated handle
v	vertex to insert
before	vertex to insert before

tfVertexSolverSurfaceHandle_insertVertexBetween()

HRESULT tfVertexSolverSurfaceHandle_insertVertexBetween	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	toInsert,
		struct tfVertexSolverVertexHandleHandle *	v1,
		struct tfVertexSolverVertexHandleHandle *	v2 )

Insert a vertex between two vertices.

Parameters

handle	populated handle
toInsert	vertex to insert
v1	first vertex
v2	second vertex

tfVertexSolverSurfaceHandle_isOutside()

HRESULT tfVertexSolverSurfaceHandle_isOutside	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	pos,
		bool *	result )

Test whether a point is on the outer side.

Parameters

handle	populated handle
pos	position
result	result of test

tfVertexSolverSurfaceHandle_merge()

HRESULT tfVertexSolverSurfaceHandle_merge	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle *	toRemove,
		tfFloatP_t *	lenCfs,
		unsigned int	numLenCfs )

Merge with a surface. The passed surface is destroyed.

Surfaces must have the same number of vertices. Vertices are paired by nearest distance.

Parameters

handle	populated handle
toRemove	surface to remove
lenCfs	distance coefficients in [0, 1] for where to place the merged vertex, from each kept vertex to each removed vertex
numLenCfs	number of distance coefficients

tfVertexSolverSurfaceHandle_neighborSurfaces()

HRESULT tfVertexSolverSurfaceHandle_neighborSurfaces	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle **	objs,
		int *	numObjs )

Connected surfaces on the same body.

Parameters

handle	populated handle
objs	surfaces
numObjs	number of surfaces

tfVertexSolverSurfaceHandle_neighborVertices()

HRESULT tfVertexSolverSurfaceHandle_neighborVertices	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v,
		struct tfVertexSolverVertexHandleHandle *	v1,
		struct tfVertexSolverVertexHandleHandle *	v2 )

Connected vertices on the same surface.

Parameters

handle	populated handle
v	vertex of interest
v1	first connected vertex
v2	second connected vertex

tfVertexSolverSurfaceHandle_normalDistance()

HRESULT tfVertexSolverSurfaceHandle_normalDistance	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	pos,
		tfFloatP_t *	result )

Get the normal distance to a point; negative distance means that the point is on the inner side.

Parameters

handle	populated handle
pos	position
result	normal distance

tfVertexSolverSurfaceHandle_objType()

HRESULT tfVertexSolverSurfaceHandle_objType	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		unsigned int *	label )

Get the mesh object type.

Parameters

handle	populated handle
label	type label

tfVertexSolverSurfaceHandle_positionChanged()

HRESULT tfVertexSolverSurfaceHandle_positionChanged

(

struct tfVertexSolverSurfaceHandleHandle *

handle

)

Update internal data due to a change in position.

Parameters

handle

populated handle

tfVertexSolverSurfaceHandle_refreshBodies()

HRESULT tfVertexSolverSurfaceHandle_refreshBodies

(

struct tfVertexSolverSurfaceHandleHandle *

handle

)

Refresh internal ordering of defined bodies.

Parameters

handle

populated handle

tfVertexSolverSurfaceHandle_removeBody()

HRESULT tfVertexSolverSurfaceHandle_removeBody	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	b )

Remove a body.

Parameters

handle	populated handle
b	body to remove

tfVertexSolverSurfaceHandle_removeVertex()

HRESULT tfVertexSolverSurfaceHandle_removeVertex	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v )

Remove a vertex.

Parameters

handle	populated handle
v	vertex to remove

tfVertexSolverSurfaceHandle_replaceBodyAt()

HRESULT tfVertexSolverSurfaceHandle_replaceBodyAt	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	toInsert,
		const int &	idx )

Replace a body at a location in the list of bodies.

Parameters

handle	populated handle
toInsert	body to insert
idx	location of body to replace

tfVertexSolverSurfaceHandle_replaceBodyWith()

HRESULT tfVertexSolverSurfaceHandle_replaceBodyWith	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	toInsert,
		struct tfVertexSolverBodyHandleHandle *	toRemove )

Replace a body with another body.

Parameters

handle	populated handle
toInsert	body to insert
toRemove	body to replace

tfVertexSolverSurfaceHandle_replaceVertexAt()

HRESULT tfVertexSolverSurfaceHandle_replaceVertexAt	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	toInsert,
		const int &	idx )

Replace a vertex at a location in the list of vertices.

Parameters

handle	populated handle
toInsert	vertex to insert
idx	location of vertex to replace

tfVertexSolverSurfaceHandle_replaceVertexWith()

HRESULT tfVertexSolverSurfaceHandle_replaceVertexWith	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	toInsert,
		struct tfVertexSolverVertexHandleHandle *	toRemove )

Replace a vertex with another vertex.

Parameters

handle	populated handle
toInsert	vertex to insert
toRemove	vertex to replace

tfVertexSolverSurfaceHandle_setDensity()

HRESULT tfVertexSolverSurfaceHandle_setDensity	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t	density )

Set the mass density; only used in 2D simulation.

Parameters

handle	populated handle
density	density

tfVertexSolverSurfaceHandle_setStyle()

HRESULT tfVertexSolverSurfaceHandle_setStyle	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfRenderingStyleHandle *	s )

Set the surface style.

Parameters

handle	populated handle
s	surface style

tfVertexSolverSurfaceHandle_sharedContiguousVertices()

HRESULT tfVertexSolverSurfaceHandle_sharedContiguousVertices	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle *	other,
		unsigned int	edgeLabel,
		struct tfVertexSolverVertexHandleHandle **	objs,
		int *	numObjs )

Get the vertices of a contiguous shared edge with another surface.

Edges are labeled in increasing order starting with "1". A requested edge that does not exist returns empty.

A requested edge with label "0" returns all vertices not shared with another surface

Parameters

handle	populated handle
other	another surface
edgeLabel	edge label
objs	objects
numObjs	number of objects

tfVertexSolverSurfaceHandle_splitBy()

HRESULT tfVertexSolverSurfaceHandle_splitBy	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	v1,
		struct tfVertexSolverVertexHandleHandle *	v2,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Split into two surfaces.

Both vertices must already be in the surface and not adjacent

Vertices in the winding from from vertex to second go to newly created surface

Requires updated surface members (e.g., centroid)

Parameters

handle	populated handle
v1	fist vertex defining the split
v2	second vertex defining the split
newObj	newly created surface

tfVertexSolverSurfaceHandle_splitHow()

HRESULT tfVertexSolverSurfaceHandle_splitHow	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		tfFloatP_t *	cp_pos,
		tfFloatP_t *	cp_norm,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Split into two surfaces.

Requires updated surface members (e.g., centroid)

Parameters

handle	populated handle
cp_pos	point on the cut plane
cp_norm	normal of the cut plane
newObj	newly created surface

tfVertexSolverSurfaceHandle_str()

HRESULT tfVertexSolverSurfaceHandle_str	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a summary string.

Parameters

handle	populated handle
str	summary string
numChars	number of chars

tfVertexSolverSurfaceHandle_toString()

HRESULT tfVertexSolverSurfaceHandle_toString	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

handle	populated handle
str	JSON string
numChars	number of chars

tfVertexSolverSurfaceHandle_validate()

HRESULT tfVertexSolverSurfaceHandle_validate	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		bool *	result )

Validate the body.

Parameters

handle	populated handle
result	result of validation

tfVertexSolverSurfaceHandle_volumeSense()

HRESULT tfVertexSolverSurfaceHandle_volumeSense	(	struct tfVertexSolverSurfaceHandleHandle *	handle,
		struct tfVertexSolverBodyHandleHandle *	body,
		tfFloatP_t *	result )

Get the sign of the volume contribution to a body that this surface contributes.

Parameters

handle	populated handle
body	a body
result	sign of the volume contribution

tfVertexSolverSurfaceType_createSurfaceIO()

HRESULT tfVertexSolverSurfaceType_createSurfaceIO	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfIoThreeDFFaceDataHandle *	face,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a surface of this type from a face.

Parameters

handle	populated handle
face	face data
newObj	newly created objects

tfVertexSolverSurfaceType_createSurfaceIOA()

HRESULT tfVertexSolverSurfaceType_createSurfaceIOA	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfIoThreeDFFaceDataHandle **	faces,
		unsigned int	numSurfaces,
		struct tfVertexSolverSurfaceHandleHandle **	newObjs )

Construct a surface of this type from a face.

Parameters

handle	populated handle
faces	face data
numSurfaces	number of surfaces
newObjs	newly created objects

tfVertexSolverSurfaceType_createSurfaceP()

HRESULT tfVertexSolverSurfaceType_createSurfaceP	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		tfFloatP_t **	positions,
		unsigned int	numPositions,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a surface of this type from a set of positions.

Parameters

handle	populated handle
positions	set of positions
numPositions	number of positions
newObj	newly created objects

tfVertexSolverSurfaceType_createSurfacePA()

HRESULT tfVertexSolverSurfaceType_createSurfacePA	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		tfFloatP_t ***	spositions,
		unsigned int	numSurfaces,
		unsigned int *	numPositions,
		struct tfVertexSolverSurfaceHandleHandle **	newObjs )

Construct a surface of this type from a set of positions.

Parameters

handle	populated handle
positions	sets of positions
numSurfaces	number of surfaces
numPositions	number of positions
newObjs	newly created objects

tfVertexSolverSurfaceType_createSurfaceV()

HRESULT tfVertexSolverSurfaceType_createSurfaceV	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfVertexSolverVertexHandleHandle **	vertices,
		unsigned int	numVerts,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a surface of this type from a set of vertices.

Parameters

handle	populated handle
vertices	set of vertices
numVerts	number of vertices
newObj	newly created object

tfVertexSolverSurfaceType_createSurfaceVA()

HRESULT tfVertexSolverSurfaceType_createSurfaceVA	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfVertexSolverVertexHandleHandle ***	vertices,
		unsigned int	numSurfaces,
		unsigned int *	numVerts,
		struct tfVertexSolverSurfaceHandleHandle **	newObjs )

Construct a surface of this type from a set of vertices.

Parameters

handle	populated handle
vertices	sets of vertices
numSurfaces	number of surfaces
numVerts	number of vertices per surface
newObjs	newly created objects

tfVertexSolverSurfaceType_fromString()

HRESULT tfVertexSolverSurfaceType_fromString	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		const char *	str )

Create from a JSON string representation.

The returned type is automatically registered with the solver.

Parameters

handle
str	a string, as returned by toString

tfVertexSolverSurfaceType_getDensity()

HRESULT tfVertexSolverSurfaceType_getDensity	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		tfFloatP_t *	result )

Get the density of the surface type; only used in 2D simulation.

Parameters

handle	populated handle
result	density

tfVertexSolverSurfaceType_getInstanceIds()

HRESULT tfVertexSolverSurfaceType_getInstanceIds	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		int **	ids,
		unsigned int *	numObjs )

Get the list of instances ids that belong to this type.

Parameters

handle	populated handle
ids	instance ids
numObjs	number of instances

tfVertexSolverSurfaceType_getInstances()

HRESULT tfVertexSolverSurfaceType_getInstances	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfVertexSolverSurfaceHandleHandle **	objs,
		unsigned int *	numObjs )

Get the list of instances that belong to this type.

Parameters

handle	populated handle
objs	instances
numObjs	number of instances

tfVertexSolverSurfaceType_getName()

HRESULT tfVertexSolverSurfaceType_getName	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Name of this surface type.

Parameters

handle	populated handle
str	name
numChars	number of chars

tfVertexSolverSurfaceType_getStyle()

HRESULT tfVertexSolverSurfaceType_getStyle	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfRenderingStyleHandle *	style )

Get the style of the surface type.

Parameters

handle	populated handle
style	style of the surface type

tfVertexSolverSurfaceType_init()

HRESULT tfVertexSolverSurfaceType_init

(

struct tfVertexSolverSurfaceTypeHandle *

handle

)

Initialize a new instance.

Parameters

handle

handle to populate

tfVertexSolverSurfaceType_initD()

HRESULT tfVertexSolverSurfaceType_initD	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfVertexSolverSurfaceTypeSpec	sdef )

Initialize an instance from a definition.

Parameters

handle	handle to populate
sdef	definition

tfVertexSolverSurfaceType_isRegistered()

HRESULT tfVertexSolverSurfaceType_isRegistered	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		bool *	result )

Tests whether this type is registered.

Parameters

handle
result	result of test

tfVertexSolverSurfaceType_nPolygon()

HRESULT tfVertexSolverSurfaceType_nPolygon	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		unsigned int	n,
		tfFloatP_t *	center,
		tfFloatP_t	radius,
		tfFloatP_t *	ax1,
		tfFloatP_t *	ax2,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Construct a polygon with n vertices circumscribed on a circle.

Parameters

handle	populated handle
n	number of points
center	center of the circle
radius	radius of the circle
ax1	first axis defining the orientation of the circle
ax2	second axis defining the orientation of the circle
newObj	newly created object

tfVertexSolverSurfaceType_objType()

HRESULT tfVertexSolverSurfaceType_objType	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		unsigned int *	label )

Get the mesh object type.

Parameters

handle	populated handle
label	mesh object type label

tfVertexSolverSurfaceType_registerType()

HRESULT tfVertexSolverSurfaceType_registerType

(

struct tfVertexSolverSurfaceTypeHandle *

handle

)

Registers a type with the engine.

Parameters

handle

populated handle

tfVertexSolverSurfaceType_replace()

HRESULT tfVertexSolverSurfaceType_replace	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		struct tfVertexSolverVertexHandleHandle *	toReplace,
		tfFloatP_t *	lenCfs,
		unsigned int	numLenCfs,
		struct tfVertexSolverSurfaceHandleHandle *	newObj )

Replace a vertex with a surface. Vertices are created for the surface along every destroyed edge.

Parameters

handle	populated handle
toReplace	vertex to replace
lenCfs	distance coefficients in [0, 1] defining where to create a new vertex along each edge
numLenCfs	number of distance coefficients
newObj	newly created object

tfVertexSolverSurfaceType_setDensity()

HRESULT tfVertexSolverSurfaceType_setDensity	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		tfFloatP_t	result )

Set the density of the surface type; only used in 2D simulation.

Parameters

handle	populated handle
result	density

tfVertexSolverSurfaceType_setName()

HRESULT tfVertexSolverSurfaceType_setName	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		const char *	str )

Set the name of this surface type.

Parameters

handle	populated handle
str	name

tfVertexSolverSurfaceType_str()

HRESULT tfVertexSolverSurfaceType_str	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a summary string.

Parameters

handle	populated handle
str	summary string
numChars	number of chars

tfVertexSolverSurfaceType_toString()

HRESULT tfVertexSolverSurfaceType_toString	(	struct tfVertexSolverSurfaceTypeHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

param str summary string

Parameters

numChars

number of chars
