tfC_mesh_create.h File Reference

#include <tf_port_c.h>
#include "tfCSurface.h"
#include "tfCBody.h"

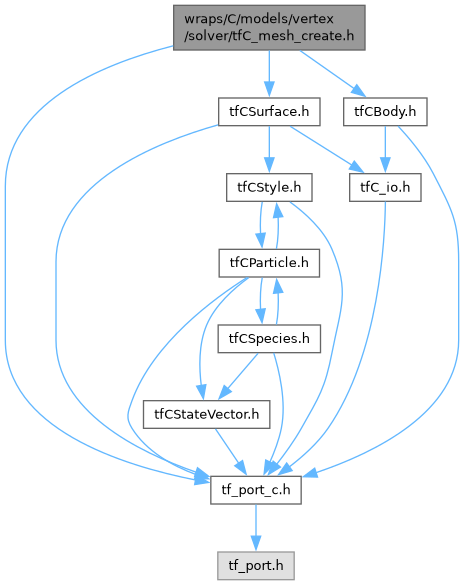

Include dependency graph for tfC_mesh_create.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
HRESULT	tfVertexSolverCreateQuadMesh (struct tfVertexSolverSurfaceTypeHandle *stype, tfFloatP_t *startPos, unsigned int num_1, unsigned int num_2, tfFloatP_t len_1, tfFloatP_t len_2, const char *ax_1, const char *ax_2, struct tfVertexSolverSurfaceHandleHandle **result)
	Populate the mesh with quadrilateral surfaces.
HRESULT	tfVertexSolverCreatePLPDMesh (struct tfVertexSolverBodyTypeHandle *btype, struct tfVertexSolverSurfaceTypeHandle *stype, tfFloatP_t *startPos, unsigned int num_1, unsigned int num_2, unsigned int num_3, tfFloatP_t len_1, tfFloatP_t len_2, tfFloatP_t len_3, const char *ax_1, const char *ax_2, struct tfVertexSolverBodyHandleHandle **result)
	Populate the mesh with parallelepiped bodies.
HRESULT	tfVertexSolverCreateHex2DMesh (struct tfVertexSolverSurfaceTypeHandle *stype, tfFloatP_t *startPos, unsigned int num_1, unsigned int num_2, tfFloatP_t hexRad, const char *ax_1, const char *ax_2, struct tfVertexSolverSurfaceHandleHandle **result)
	Populate the mesh with hexagonal surfaces.
HRESULT	tfVertexSolverCreateHex3DMesh (struct tfVertexSolverBodyTypeHandle *btype, struct tfVertexSolverSurfaceTypeHandle *stype, tfFloatP_t *startPos, unsigned int num_1, unsigned int num_2, unsigned int num_3, tfFloatP_t hexRad, tfFloatP_t hex_height, const char *ax_1, const char *ax_2, struct tfVertexSolverBodyHandleHandle **result)
	Populate the mesh with bodies from extruded hexagonal surfaces.

Function Documentation

tfVertexSolverCreateHex2DMesh()

HRESULT tfVertexSolverCreateHex2DMesh	(	struct tfVertexSolverSurfaceTypeHandle *	stype,
		tfFloatP_t *	startPos,
		unsigned int	num_1,
		unsigned int	num_2,
		tfFloatP_t	hexRad,
		const char *	ax_1,
		const char *	ax_2,
		struct tfVertexSolverSurfaceHandleHandle **	result )

Populate the mesh with hexagonal surfaces.

Requires an initialized solver.

Parameters

stype	surface type
startPos	starting position
num_1	number of elements in the first direction
num_2	number of elements in the second direction
hexRad	radius of hexagon vertices
ax_1	axis name of the first direction (e.g., "x")
ax_2	axis name of the second direction
result	constructed surfaces

tfVertexSolverCreateHex3DMesh()

HRESULT tfVertexSolverCreateHex3DMesh	(	struct tfVertexSolverBodyTypeHandle *	btype,
		struct tfVertexSolverSurfaceTypeHandle *	stype,
		tfFloatP_t *	startPos,
		unsigned int	num_1,
		unsigned int	num_2,
		unsigned int	num_3,
		tfFloatP_t	hexRad,
		tfFloatP_t	hex_height,
		const char *	ax_1,
		const char *	ax_2,
		struct tfVertexSolverBodyHandleHandle **	result )

Populate the mesh with bodies from extruded hexagonal surfaces.

Requires an initialized solver.

Surfaces are placed in the plane of the first and second directions, and extruded along the third direction.

Parameters

btype	body type
stype	surface type
startPos	starting position
num_1	number of elements in the first direction
num_2	number of elements in the second direction
num_3	number of elements in the third directionnumber of elements in the third direction
hexRad	radius of hexagon vertices
hex_height	extrusion length per body
ax_1	axis name of the first direction (e.g., "x")
ax_2	axis name of the second direction
result	constructed bodies

tfVertexSolverCreatePLPDMesh()

HRESULT tfVertexSolverCreatePLPDMesh	(	struct tfVertexSolverBodyTypeHandle *	btype,
		struct tfVertexSolverSurfaceTypeHandle *	stype,
		tfFloatP_t *	startPos,
		unsigned int	num_1,
		unsigned int	num_2,
		unsigned int	num_3,
		tfFloatP_t	len_1,
		tfFloatP_t	len_2,
		tfFloatP_t	len_3,
		const char *	ax_1,
		const char *	ax_2,
		struct tfVertexSolverBodyHandleHandle **	result )

Populate the mesh with parallelepiped bodies.

Requires an initialized solver.

Parameters

btype	body type
stype	surface type
startPos	starting position
num_1	number of elements in the first direction
num_2	number of elements in the second direction
num_3	number of elements in the third direction
len_1	length of each element in the first direction
len_2	length of each element in the second direction
len_3	length of each element in the third direction
ax_1	axis name of the first direction (e.g., "x")
ax_2	axis name of the second direction
result	constructed bodies

tfVertexSolverCreateQuadMesh()

HRESULT tfVertexSolverCreateQuadMesh	(	struct tfVertexSolverSurfaceTypeHandle *	stype,
		tfFloatP_t *	startPos,
		unsigned int	num_1,
		unsigned int	num_2,
		tfFloatP_t	len_1,
		tfFloatP_t	len_2,
		const char *	ax_1,
		const char *	ax_2,
		struct tfVertexSolverSurfaceHandleHandle **	result )

Populate the mesh with quadrilateral surfaces.

Requires an initialized solver.

Parameters

stype	surface type
startPos	starting position
num_1	number of elements in the first direction
num_2	number of elements in the second direction
len_1	length of each element in the first direction
len_2	length of each element in the second direction
ax_1	axis name of the first direction (e.g., "x")
ax_2	axis name of the second direction
result	constructed surfaces
