#include "tf_port_c.h"
#include "tfCParticle.h"

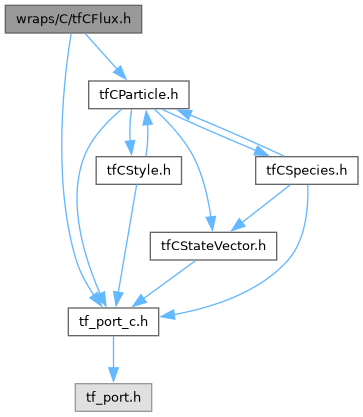

Include dependency graph for tfCFlux.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	tfFluxKindHandle

struct	tfFluxHandle
	Handle to a Flux instance. More...

struct	tfFluxesHandle
	Handle to a Fluxes instance. More...

Functions
HRESULT	tfFluxKindHandle_init (struct tfFluxKindHandle *handle)
	Initialize an instance.

HRESULT	tfFlux_getSize (struct tfFluxHandle handle, unsigned int size)
	Get the size of the fluxes.

HRESULT	tfFlux_getKind (struct tfFluxHandle handle, unsigned int index, unsigned int kind)
	Get the kind of a flux.

HRESULT	tfFlux_getTypeIds (struct tfFluxHandle handle, unsigned int index, unsigned int typeid_a, unsigned int *typeid_b)
	Get the type ids of a flux.

HRESULT	tfFlux_getCoef (struct tfFluxHandle handle, unsigned int index, tfFloatP_t coef)
	Get the coefficient of a flux.

HRESULT	tfFlux_setCoef (struct tfFluxHandle *handle, unsigned int index, tfFloatP_t coef)
	Set the coefficient of a flux.

HRESULT	tfFlux_getDecayCoef (struct tfFluxHandle handle, unsigned int index, tfFloatP_t decay_coef)
	Get the decay coefficient of a flux.

HRESULT	tfFlux_setDecayCoef (struct tfFluxHandle *handle, unsigned int index, tfFloatP_t decay_coef)
	Set the decay coefficient of a flux.

HRESULT	tfFlux_getTarget (struct tfFluxHandle handle, unsigned int index, tfFloatP_t target)
	Get the target of a flux.

HRESULT	tfFlux_setTarget (struct tfFluxHandle *handle, unsigned int index, tfFloatP_t target)
	Set the target of a flux.

HRESULT	tfFlux_getCutoff (struct tfFluxHandle handle, unsigned int index, tfFloatP_t cutoff)
	Set the cutoff of a flux.

HRESULT	tfFlux_setCutoff (struct tfFluxHandle *handle, unsigned int index, tfFloatP_t cutoff)
	Set the cutoff of a flux.

HRESULT	tfFluxes_getSize (struct tfFluxesHandle handle, int size)
	Get the number of individual flux objects.

HRESULT	tfFluxes_getFlux (struct tfFluxesHandle handle, unsigned int index, struct tfFluxHandle flux)
	Get a flux.

HRESULT	tfFluxes_fluxFick (struct tfFluxesHandle handle, struct tfParticleTypeHandle A, struct tfParticleTypeHandle B, const char name, tfFloatP_t k, tfFloatP_t decay, tfFloatP_t cutoff)
	Creates and binds a Fickian diffusion flux.

HRESULT	tfFluxes_secrete (struct tfFluxesHandle handle, struct tfParticleTypeHandle A, struct tfParticleTypeHandle B, const char name, tfFloatP_t k, tfFloatP_t target, tfFloatP_t decay, tfFloatP_t cutoff)
	Creates a secretion flux by active pumping.

HRESULT	tfFluxes_uptake (struct tfFluxesHandle handle, struct tfParticleTypeHandle A, struct tfParticleTypeHandle B, const char name, tfFloatP_t k, tfFloatP_t target, tfFloatP_t decay, tfFloatP_t cutoff)
	Creates an uptake flux by active pumping.

Function Documentation

◆ tfFlux_getCoef()

HRESULT tfFlux_getCoef	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t *	coef )

Get the coefficient of a flux.

Parameters

handle	populated handle
index	flux index
coef	flux coefficient

Returns: S_OK on success

◆ tfFlux_getCutoff()

HRESULT tfFlux_getCutoff	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t *	cutoff )

Set the cutoff of a flux.

Parameters

handle	populated handle
index	flux index
cutoff	flux cutoff

Returns: S_OK on success

◆ tfFlux_getDecayCoef()

HRESULT tfFlux_getDecayCoef	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t *	decay_coef )

Get the decay coefficient of a flux.

Parameters

handle	populated handle
index	flux index
decay_coef	flux decay coefficient

Returns: S_OK on success

◆ tfFlux_getKind()

HRESULT tfFlux_getKind	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		unsigned int *	kind )

Get the kind of a flux.

Parameters

handle	populated handle
index	flux index
kind	flux kind

Returns: S_OK on success

◆ tfFlux_getSize()

HRESULT tfFlux_getSize	(	struct tfFluxHandle *	handle,
		unsigned int *	size )

Get the size of the fluxes.

Parameters

handle	populated handle
size	flux size

Returns: S_OK on success

◆ tfFlux_getTarget()

HRESULT tfFlux_getTarget	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t *	target )

Get the target of a flux.

Parameters

handle	populated handle
index	flux index
target	flux target

Returns: S_OK on success

◆ tfFlux_getTypeIds()

HRESULT tfFlux_getTypeIds	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		unsigned int *	typeid_a,
		unsigned int *	typeid_b )

Get the type ids of a flux.

Parameters

handle	populated handle
index	flux index
typeid_a	id of first type
typeid_b	id of second type

Returns: S_OK on success

◆ tfFlux_setCoef()

HRESULT tfFlux_setCoef	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t	coef )

Set the coefficient of a flux.

Parameters

handle	populated handle
index	flux index
coef	flux coefficient

Returns: S_OK on success

◆ tfFlux_setCutoff()

HRESULT tfFlux_setCutoff	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t	cutoff )

Set the cutoff of a flux.

Parameters

handle	populated handle
index	flux index
cutoff	flux cutoff

Returns: S_OK on success

◆ tfFlux_setDecayCoef()

HRESULT tfFlux_setDecayCoef	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t	decay_coef )

Set the decay coefficient of a flux.

Parameters

handle	populated handle
index	flux index
decay_coef	flux decay coefficient

Returns: S_OK on success

◆ tfFlux_setTarget()

HRESULT tfFlux_setTarget	(	struct tfFluxHandle *	handle,
		unsigned int	index,
		tfFloatP_t	target )

Set the target of a flux.

Parameters

handle	populated handle
index	flux index
target	flux target

Returns: S_OK on success

◆ tfFluxes_fluxFick()

HRESULT tfFluxes_fluxFick	(	struct tfFluxesHandle *	handle,
		struct tfParticleTypeHandle *	A,
		struct tfParticleTypeHandle *	B,
		const char *	name,
		tfFloatP_t	k,
		tfFloatP_t	decay,
		tfFloatP_t	cutoff )

Creates and binds a Fickian diffusion flux.

Fickian diffusion flux implements the analogous reaction:

$a.S \leftrightarrow b.S ; k \left(1 - \frac{r}{r_{cutoff}} \right)\left(a.S - b.S\right) ,$

$a.S \rightarrow 0 ; \frac{d}{2} a.S ,$

$b.S \rightarrow 0 ; \frac{d}{2} b.S ,$

where $ a.S $ is a chemical species located at object $ a $ , and likewise for $ b $ , $ k $ is the flux constant, $ r $ is the distance between the two objects, $r_{cutoff}$ is the global cutoff distance, and $ d $ is an optional decay term.

Parameters

handle	handle to populate
A	first type
B	second type
name	name of species
k	flux transport coefficient
decay	flux decay coefficient
cutoff	flux cutoff distance

Returns: S_OK on success

◆ tfFluxes_getFlux()

HRESULT tfFluxes_getFlux	(	struct tfFluxesHandle *	handle,
		unsigned int	index,
		struct tfFluxHandle *	flux )

Get a flux.

Parameters

handle	populated handle
index	flux index
flux	flux

Returns: S_OK on success

◆ tfFluxes_getSize()

HRESULT tfFluxes_getSize	(	struct tfFluxesHandle *	handle,
		int *	size )

Get the number of individual flux objects.

Parameters

handle	populated handle
size	number of individual flux objects

Returns: S_OK on success

◆ tfFluxes_secrete()

HRESULT tfFluxes_secrete	(	struct tfFluxesHandle *	handle,
		struct tfParticleTypeHandle *	A,
		struct tfParticleTypeHandle *	B,
		const char *	name,
		tfFloatP_t	k,
		tfFloatP_t	target,
		tfFloatP_t	decay,
		tfFloatP_t	cutoff )

Creates a secretion flux by active pumping.

Secretion flux implements the analogous reaction:

$a.S \rightarrow b.S ; k \left(1 - \frac{r}{r_{cutoff}} \right)\left(a.S - a.S_{target} \right) ,$

$a.S \rightarrow 0 ; \frac{d}{2} a.S ,$

$b.S \rightarrow 0 ; \frac{d}{2} b.S ,$

where $ a.S $ is a chemical species located at object $ a $ , and likewise for $ b $ , $ k $ is the flux constant, $ r $ is the distance between the two objects, $r_{cutoff}$ is the global cutoff distance, and $ d $ is an optional decay term.

Parameters

handle	handle to populate
A	first type
B	second type
name	name of species
k	flux transport coefficient
target	flux target
decay	flux decay coefficient
cutoff	flux cutoff distance

Returns: S_OK on success

◆ tfFluxes_uptake()

HRESULT tfFluxes_uptake	(	struct tfFluxesHandle *	handle,
		struct tfParticleTypeHandle *	A,
		struct tfParticleTypeHandle *	B,
		const char *	name,
		tfFloatP_t	k,
		tfFloatP_t	target,
		tfFloatP_t	decay,
		tfFloatP_t	cutoff )

Creates an uptake flux by active pumping.

Uptake flux implements the analogous reaction:

$a.S \rightarrow b.S ; k \left(1 - \frac{r}{r_{cutoff}}\right)\left(b.S - b.S_{target} \right)\left(a.S\right) ,$

$a.S \rightarrow 0 ; \frac{d}{2} a.S ,$

$b.S \rightarrow 0 ; \frac{d}{2} b.S ,$

where $ a.S $ is a chemical species located at object $ a $ , and likewise for $ b $ , $ k $ is the flux constant, $ r $ is the distance between the two objects, $r_{cutoff}$ is the global cutoff distance, and $ d $ is an optional decay term.

Parameters

handle	handle to populate
A	first type
B	second type
name	name of species
k	flux transport coefficient
target	flux target
decay	flux decay coefficient
cutoff	flux cutoff distance

Returns: S_OK on success

◆ tfFluxKindHandle_init()

HRESULT tfFluxKindHandle_init ( struct tfFluxKindHandle * handle )

Initialize an instance.

Parameters

handle handle to populate

Returns: S_OK on success
