#include "tf_port_c.h"
#include "tfCStyle.h"
#include "tfCStateVector.h"
#include "tfCSpecies.h"

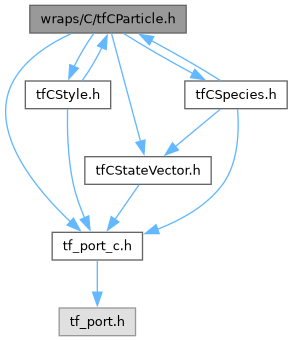

Include dependency graph for tfCParticle.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	tfMappedParticleDataEnum
	Mapped particle data enums. More...

struct	tfParticleTypeStyleSpec
	Particle type style definition in Tissue Forge C. More...

struct	tfParticleTypeSpec
	Particle type definition in Tissue Forge C. More...

struct	tfParticleDynamicsEnumHandle

struct	tfParticleFlagsHandle

struct	tfParticleHandleHandle
	Handle to a ParticleHandle instance. More...

struct	tfParticleTypeHandle
	Handle to a ParticleType instance. More...

struct	tfParticleListHandle
	Handle to a ParticleList instance. More...

struct	tfParticleTypeListHandle
	Handle to a ParticleTypeList instance. More...

Functions
struct tfMappedParticleDataEnum	tfMappedParticleDataEnum_init ()
	Initialize an instance.

struct tfParticleTypeSpec	tfParticleTypeSpec_init ()
	Get a default definition.

struct tfParticleTypeStyleSpec	tfParticleTypeStyleSpec_init ()
	Get a default definition.

HRESULT	tfParticleDynamics_init (struct tfParticleDynamicsEnumHandle *handle)
	Initialize an instance.

HRESULT	tfParticleFlags_init (struct tfParticleFlagsHandle *handle)
	Initialize an instance.

HRESULT	tfParticleHandle_init (struct tfParticleHandleHandle *handle, unsigned int pid)
	Initialize an instance.

HRESULT	tfParticleHandle_destroy (struct tfParticleHandleHandle *handle)
	Destroys the handle instance.

HRESULT	tfParticleHandle_getType (struct tfParticleHandleHandle handle, struct tfParticleTypeHandle typeHandle)
	Gets the particle type of this handle.

HRESULT	tfParticleHandle_str (struct tfParticleHandleHandle handle, char str, unsigned int numChars)
	Get a summary string of the particle.

HRESULT	tfParticleHandle_split (struct tfParticleHandleHandle handle, struct tfParticleHandleHandle newParticleHandle)
	Splits a single particle into two.

HRESULT	tfParticleHandle_splitTypes (struct tfParticleHandleHandle handle, struct tfParticleHandleHandle newParticleHandle, struct tfParticleTypeHandle parentTypeHandle, struct tfParticleTypeHandle childTypeHandle)
	Splits a single particle into two and optionally with different resulting particle types.

HRESULT	tfParticleHandle_destroyParticle (struct tfParticleHandleHandle *handle)
	Destroys the particle, and removes it from inventory.

HRESULT	tfParticleHandle_sphericalPosition (struct tfParticleHandleHandle handle, tfFloatP_t *position)
	Calculates the particle's coordinates in spherical coordinates relative to the center of the universe.

HRESULT	tfParticleHandle_sphericalPositionPoint (struct tfParticleHandleHandle handle, tfFloatP_t origin, tfFloatP_t **position)
	Calculates the particle's coordinates in spherical coordinates relative to a point.

HRESULT	tfParticleHandle_relativePosition (struct tfParticleHandleHandle handle, tfFloatP_t origin, tfFloatP_t **position)
	Computes the relative position with respect to an origin while.

HRESULT	tfParticleHandle_become (struct tfParticleHandleHandle handle, struct tfParticleTypeHandle typeHandle)
	Dynamically changes the type of an object. We can change the type of a ParticleType-derived object to anyther pre-existing ParticleType-derived type. What this means is that if we have an object of say type A, we can change it to another type, say B, and and all of the forces and processes that acted on objects of type A stip and the forces and processes defined for type B now take over.

HRESULT	tfParticleHandle_neighborsD (struct tfParticleHandleHandle handle, tfFloatP_t distance, struct tfParticleHandleHandle neighbors, int numNeighbors)
	Get the particles within a distance of a particle.

HRESULT	tfParticleHandle_neighborsT (struct tfParticleHandleHandle handle, struct tfParticleTypeHandle ptypes, int numTypes, struct tfParticleHandleHandle *neighbors, int numNeighbors)
	Get the particles of a set of types within the global cutoff distance.

HRESULT	tfParticleHandle_neighborsDT (struct tfParticleHandleHandle handle, tfFloatP_t distance, struct tfParticleTypeHandle ptypes, int numTypes, struct tfParticleHandleHandle *neighbors, int numNeighbors)
	Get the particles of a set of types within a distance of a particle.

HRESULT	tfParticleHandle_getBondedNeighbors (struct tfParticleHandleHandle handle, struct tfParticleHandleHandle neighbors, int numNeighbors)
	Get a list of all bonded neighbors.

HRESULT	tfParticleHandle_distance (struct tfParticleHandleHandle handle, struct tfParticleHandleHandle other, tfFloatP_t *distance)
	Calculates the distance to another particle.

HRESULT	tfParticleHandle_getMass (struct tfParticleHandleHandle handle, tfFloatP_t mass)
	Get the particle mass.

HRESULT	tfParticleHandle_setMass (struct tfParticleHandleHandle *handle, tfFloatP_t mass)
	Set the particle mass.

HRESULT	tfParticleHandle_getFrozen (struct tfParticleHandleHandle handle, bool frozen)
	Test whether the particle is frozen.

HRESULT	tfParticleHandle_setFrozen (struct tfParticleHandleHandle *handle, bool frozen)
	Set whether the particle is frozen.

HRESULT	tfParticleHandle_getFrozenX (struct tfParticleHandleHandle handle, bool frozen)
	Test whether the particle is frozen along the x-direction.

HRESULT	tfParticleHandle_setFrozenX (struct tfParticleHandleHandle *handle, bool frozen)
	Set whether the particle is frozen along the x-direction.

HRESULT	tfParticleHandle_getFrozenY (struct tfParticleHandleHandle handle, bool frozen)
	Test whether the particle is frozen along the y-direction.

HRESULT	tfParticleHandle_setFrozenY (struct tfParticleHandleHandle *handle, bool frozen)
	Set whether the particle is frozen along the y-direction.

HRESULT	tfParticleHandle_getFrozenZ (struct tfParticleHandleHandle handle, bool frozen)
	Test whether the particle is frozen along the z-direction.

HRESULT	tfParticleHandle_setFrozenZ (struct tfParticleHandleHandle *handle, bool frozen)
	Set whether the particle is frozen along the z-direction.

HRESULT	tfParticleHandle_getStyle (struct tfParticleHandleHandle handle, struct tfRenderingStyleHandle style)
	Get the particle style. Fails if no style is set.

HRESULT	tfParticleHandle_hasStyle (struct tfParticleHandleHandle handle, bool hasStyle)
	Test whether the particle has a style.

HRESULT	tfParticleHandle_setStyle (struct tfParticleHandleHandle handle, struct tfRenderingStyleHandle style)
	Set the particle style.

HRESULT	tfParticleHandle_getAge (struct tfParticleHandleHandle handle, tfFloatP_t age)
	Get the particle age.

HRESULT	tfParticleHandle_getRadius (struct tfParticleHandleHandle handle, tfFloatP_t radius)
	Get the particle radius.

HRESULT	tfParticleHandle_setRadius (struct tfParticleHandleHandle *handle, tfFloatP_t radius)
	Set the particle radius.

HRESULT	tfParticleHandle_getName (struct tfParticleHandleHandle handle, char name, unsigned int numChars)
	Get the particle name.

HRESULT	tfParticleHandle_getName2 (struct tfParticleHandleHandle handle, char name, unsigned int numChars)
	Get the particle second name.

HRESULT	tfParticleHandle_getPosition (struct tfParticleHandleHandle handle, tfFloatP_t *position)
	Get the particle position.

HRESULT	tfParticleHandle_setPosition (struct tfParticleHandleHandle handle, tfFloatP_t position)
	Set the particle position.

HRESULT	tfParticleHandle_getVelocity (struct tfParticleHandleHandle handle, tfFloatP_t *velocity)
	Get the particle velocity.

HRESULT	tfParticleHandle_setVelocity (struct tfParticleHandleHandle handle, tfFloatP_t velocity)
	Set the particle velocity.

HRESULT	tfParticleHandle_getForce (struct tfParticleHandleHandle handle, tfFloatP_t *force)
	Get the particle force.

HRESULT	tfParticleHandle_getForceInit (struct tfParticleHandleHandle handle, tfFloatP_t *force)
	Get the particle initial force.

HRESULT	tfParticleHandle_setForceInit (struct tfParticleHandleHandle handle, tfFloatP_t force)
	Set the particle initial force.

HRESULT	tfParticleHandle_getId (struct tfParticleHandleHandle handle, int pid)
	Get the particle id.

HRESULT	tfParticleHandle_getTypeId (struct tfParticleHandleHandle handle, int tid)
	Get the particle type id.

HRESULT	tfParticleHandle_getClusterId (struct tfParticleHandleHandle handle, int cid)
	Get the particle cluster id. -1 if particle is not a cluster.

HRESULT	tfParticleHandle_getFlags (struct tfParticleHandleHandle handle, int flags)
	Get the particle flags.

HRESULT	tfParticleHandle_hasSpecies (struct tfParticleHandleHandle handle, bool flag)
	Test whether a particle has species.

HRESULT	tfParticleHandle_getSpecies (struct tfParticleHandleHandle handle, struct tfStateStateVectorHandle svec)
	Get the state vector. Fails if the particle does not have a state vector.

HRESULT	tfParticleHandle_setSpecies (struct tfParticleHandleHandle handle, struct tfStateStateVectorHandle svec)
	Set the state vector.

HRESULT	tfParticleHandle_toCluster (struct tfParticleHandleHandle handle, struct tfClusterParticleHandleHandle chandle)
	Convert the particle to a cluster; fails if particle is not a cluster.

HRESULT	tfParticleHandle_toString (struct tfParticleHandleHandle handle, char str, unsigned int numChars)
	Get a JSON string representation.

HRESULT	tfParticleHandle_lt (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleHandle_gt (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleHandle_le (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleHandle_ge (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleHandle_eq (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleHandle_ne (struct tfParticleHandleHandle lhs, struct tfParticleHandleHandle rhs, bool *result)

HRESULT	tfParticleType_init (struct tfParticleTypeHandle *handle)
	Initialize an instance.

HRESULT	tfParticleType_initD (struct tfParticleTypeHandle *handle, struct tfParticleTypeSpec pdef)
	Initialize an instance from a definition.

HRESULT	tfParticleType_getName (struct tfParticleTypeHandle handle, char name, unsigned int numChars)
	Get the type name.

HRESULT	tfParticleType_setName (struct tfParticleTypeHandle handle, const char name)
	Set the type name. Throws an error if the type is already registered.

HRESULT	tfParticleType_getId (struct tfParticleTypeHandle handle, int id)
	Get the type id. -1 if not registered.

HRESULT	tfParticleType_getTypeFlags (struct tfParticleTypeHandle handle, unsigned int flags)
	Get the type flags.

HRESULT	tfParticleType_setTypeFlags (struct tfParticleTypeHandle *handle, unsigned int flags)
	Set the type flags.

HRESULT	tfParticleType_getParticleFlags (struct tfParticleTypeHandle handle, unsigned int flags)
	Get the particle flags.

HRESULT	tfParticleType_setParticleFlags (struct tfParticleTypeHandle *handle, unsigned int flags)
	Set the particle flags.

HRESULT	tfParticleType_getStyle (struct tfParticleTypeHandle handle, struct tfRenderingStyleHandle style)
	Get the type style.

HRESULT	tfParticleType_setStyle (struct tfParticleTypeHandle handle, struct tfRenderingStyleHandle style)
	Set the type style.

HRESULT	tfParticleType_hasSpecies (struct tfParticleTypeHandle handle, bool flag)
	Test whether the type has species.

HRESULT	tfParticleType_getSpecies (struct tfParticleTypeHandle handle, struct tfStateSpeciesListHandle slist)
	Get the type species. Fails if the type does not have species.

HRESULT	tfParticleType_setSpecies (struct tfParticleTypeHandle handle, struct tfStateSpeciesListHandle slist)
	Set the type species.

HRESULT	tfParticleType_getMass (struct tfParticleTypeHandle handle, tfFloatP_t mass)
	Get the type mass.

HRESULT	tfParticleType_setMass (struct tfParticleTypeHandle *handle, tfFloatP_t mass)
	Set the type mass.

HRESULT	tfParticleType_getRadius (struct tfParticleTypeHandle handle, tfFloatP_t radius)
	Get the type radius.

HRESULT	tfParticleType_setRadius (struct tfParticleTypeHandle *handle, tfFloatP_t radius)
	Set the type radius.

HRESULT	tfParticleType_getKineticEnergy (struct tfParticleTypeHandle handle, tfFloatP_t kinetic_energy)
	Get the kinetic energy of all particles of this type.

HRESULT	tfParticleType_getPotentialEnergy (struct tfParticleTypeHandle handle, tfFloatP_t potential_energy)
	Get the potential energy of all particles of this type.

HRESULT	tfParticleType_getTargetEnergy (struct tfParticleTypeHandle handle, tfFloatP_t target_energy)
	Get the target energy of all particles of this type.

HRESULT	tfParticleType_setTargetEnergy (struct tfParticleTypeHandle *handle, tfFloatP_t target_energy)
	Set the target energy of all particles of this type.

HRESULT	tfParticleType_getMinimumRadius (struct tfParticleTypeHandle handle, tfFloatP_t minimum_radius)
	Get the default minimum radius of this type.

HRESULT	tfParticleType_setMinimumRadius (struct tfParticleTypeHandle *handle, tfFloatP_t minimum_radius)
	Set the default minimum radius of this type.

HRESULT	tfParticleType_getDynamics (struct tfParticleTypeHandle handle, unsigned char dynamics)
	Get the default dynamics of particles of this type.

HRESULT	tfParticleType_setDynamics (struct tfParticleTypeHandle *handle, unsigned char dynamics)
	Set the default dynamics of particles of this type.

HRESULT	tfParticleType_getNumParts (struct tfParticleTypeHandle handle, int numParts)
	Get the number of particles that are a member of this type.

HRESULT	tfParticleType_getParticle (struct tfParticleTypeHandle handle, int i, struct tfParticleHandleHandle phandle)
	Get the i'th particle that's a member of this type.

HRESULT	tfParticleType_isCluster (struct tfParticleTypeHandle handle, bool isCluster)
	Test whether this type is a cluster type.

HRESULT	tfParticleType_toCluster (struct tfParticleTypeHandle handle, struct tfClusterParticleTypeHandle chandle)
	Convert the type to a cluster; fails if the type is not a cluster.

HRESULT	tfParticleType_createParticle (struct tfParticleTypeHandle handle, int pid, tfFloatP_t position, tfFloatP_t velocity)
	Particle constructor.

HRESULT	tfParticleType_createParticleS (struct tfParticleTypeHandle handle, int pid, const char *str)
	Particle constructor.

HRESULT	tfParticleType_factory (struct tfParticleTypeHandle handle, int pids, unsigned int nr_parts, tfFloatP_t positions, tfFloatP_t *velocities)
	Particle factory constructor, for making lots of particles quickly.

HRESULT	tfParticleType_newType (struct tfParticleTypeHandle handle, const char _name, struct tfParticleTypeHandle *newTypehandle)
	Particle type constructor.

HRESULT	tfParticleType_hasPartId (struct tfParticleTypeHandle handle, int pid, bool result)
	Test whether the type has an id.

HRESULT	tfParticleType_hasPart (struct tfParticleTypeHandle handle, struct tfParticleHandleHandle part, bool *result)
	Test whether the type has a particle.

HRESULT	tfParticleType_registerType (struct tfParticleTypeHandle *handle)
	Registers a type with the engine.

HRESULT	tfParticleType_isRegistered (struct tfParticleTypeHandle handle, bool isRegistered)
	Tests whether this type is registered.

HRESULT	tfParticleType_str (struct tfParticleTypeHandle handle, char str, unsigned int numChars)
	Get a summary string of the type.

HRESULT	tfParticleType_getFrozen (struct tfParticleTypeHandle handle, bool frozen)
	Test whether this type is frozen.

HRESULT	tfParticleType_setFrozen (struct tfParticleTypeHandle *handle, bool frozen)
	Set whether this type is frozen.

HRESULT	tfParticleType_getFrozenX (struct tfParticleTypeHandle handle, bool frozen)
	Test whether this type is frozen along the x-direction.

HRESULT	tfParticleType_setFrozenX (struct tfParticleTypeHandle *handle, bool frozen)
	Set whether this type is frozen along the x-direction.

HRESULT	tfParticleType_getFrozenY (struct tfParticleTypeHandle handle, bool frozen)
	Test whether this type is frozen along the y-direction.

HRESULT	tfParticleType_setFrozenY (struct tfParticleTypeHandle *handle, bool frozen)
	Set whether this type is frozen along the y-direction.

HRESULT	tfParticleType_getFrozenZ (struct tfParticleTypeHandle handle, bool frozen)
	Test whether this type is frozen along the z-direction.

HRESULT	tfParticleType_setFrozenZ (struct tfParticleTypeHandle *handle, bool frozen)
	Set whether this type is frozen along the z-direction.

HRESULT	tfParticleType_getTemperature (struct tfParticleTypeHandle handle, tfFloatP_t temperature)
	Get the temperature of this type.

HRESULT	tfParticleType_getTargetTemperature (struct tfParticleTypeHandle handle, tfFloatP_t temperature)
	Get the target temperature of this type.

HRESULT	tfParticleType_setTargetTemperature (struct tfParticleTypeHandle *handle, tfFloatP_t temperature)
	Set the target temperature of this type.

HRESULT	tfParticleType_toString (struct tfParticleTypeHandle handle, char str, unsigned int numChars)
	Get a JSON string representation.

HRESULT	tfParticleType_fromString (struct tfParticleTypeHandle handle, const char str)
	Create from a JSON string representation.

HRESULT	tfParticleType_lt (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleType_gt (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleType_le (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleType_ge (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleType_eq (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleType_ne (struct tfParticleTypeHandle lhs, struct tfParticleTypeHandle rhs, bool *result)

HRESULT	tfParticleList_init (struct tfParticleListHandle *handle)
	Initialize an empty instance.

HRESULT	tfParticleList_initP (struct tfParticleListHandle handle, struct tfParticleHandleHandle *particles, unsigned int numParts)
	Initialize an instance with an array of particles.

HRESULT	tfParticleList_initI (struct tfParticleListHandle handle, int parts, unsigned int numParts)
	Initialize an instance with an array of particle ids.

HRESULT	tfParticleList_copy (struct tfParticleListHandle source, struct tfParticleListHandle destination)
	Copy an instance.

HRESULT	tfParticleList_destroy (struct tfParticleListHandle *handle)
	Destroy an instance.

HRESULT	tfParticleList_getIds (struct tfParticleListHandle handle, int *parts)
	Get the particle ids in the list.

HRESULT	tfParticleList_getNumParts (struct tfParticleListHandle handle, unsigned int numParts)
	Get the number of particles.

HRESULT	tfParticleList_free (struct tfParticleListHandle *handle)
	Free the memory associated with the parts list.

HRESULT	tfParticleList_insertI (struct tfParticleListHandle handle, int item, unsigned int index)
	Insert the given id into the list, returns the index of the item.

HRESULT	tfParticleList_insertP (struct tfParticleListHandle handle, struct tfParticleHandleHandle particle, unsigned int *index)
	Inserts the given particle into the list, returns the index of the particle.

HRESULT	tfParticleList_remove (struct tfParticleListHandle *handle, int id)
	Looks for the item with the given id and deletes it from the list.

HRESULT	tfParticleList_extend (struct tfParticleListHandle handle, struct tfParticleListHandle other)
	inserts the contents of another list

HRESULT	tfParticleList_hasId (struct tfParticleListHandle handle, int pid, bool result)
	Test whether the list has an id.

HRESULT	tfParticleList_hasPart (struct tfParticleListHandle handle, struct tfParticleHandleHandle part, bool *result)
	Test whether the list has a particle.

HRESULT	tfParticleList_item (struct tfParticleListHandle handle, unsigned int i, struct tfParticleHandleHandle item)
	looks for the item at the given index and returns it if found, otherwise returns NULL

HRESULT	tfParticleList_getAll (struct tfParticleListHandle *handle)
	Initialize an instance populated with all current particles.

HRESULT	tfParticleList_getVirial (struct tfParticleListHandle handle, tfFloatP_t *virial)
	Get the virial tensor of the particles.

HRESULT	tfParticleList_getRadiusOfGyration (struct tfParticleListHandle handle, tfFloatP_t rog)
	Get the radius of gyration of the particles.

HRESULT	tfParticleList_getCenterOfMass (struct tfParticleListHandle handle, tfFloatP_t *com)
	Get the center of mass of the particles.

HRESULT	tfParticleList_getCentroid (struct tfParticleListHandle handle, tfFloatP_t *cent)
	Get the centroid of the particles.

HRESULT	tfParticleList_getMomentOfInertia (struct tfParticleListHandle handle, tfFloatP_t *moi)
	Get the moment of inertia of the particles.

HRESULT	tfParticleList_getPositions (struct tfParticleListHandle handle, tfFloatP_t *positions)
	Get the particle positions.

HRESULT	tfParticleList_getVelocities (struct tfParticleListHandle handle, tfFloatP_t *velocities)
	Get the particle velocities.

HRESULT	tfParticleList_getForces (struct tfParticleListHandle handle, tfFloatP_t *forces)
	Get the forces acting on the particles.

HRESULT	tfParticleList_sphericalPositions (struct tfParticleListHandle handle, tfFloatP_t *coordinates)
	Get the spherical coordinates of each particle for a coordinate system at the center of the universe.

HRESULT	tfParticleList_sphericalPositionsO (struct tfParticleListHandle handle, tfFloatP_t origin, tfFloatP_t **coordinates)
	Get the spherical coordinates of each particle for a coordinate system with a specified origin.

HRESULT	tfParticleList_getOwnsData (struct tfParticleListHandle handle, bool result)
	Get whether the list owns its data.

HRESULT	tfParticleList_setOwnsData (struct tfParticleListHandle *handle, bool flag)
	Set whether the list owns its data.

HRESULT	tfParticleList_getMutable (struct tfParticleListHandle handle, bool result)
	Get whether the list is mutable.

HRESULT	tfParticleList_setMutable (struct tfParticleListHandle *handle, bool flag)
	Set whether the list is mutable.

HRESULT	tfParticleList_toString (struct tfParticleListHandle handle, char str, unsigned int numChars)
	Get a JSON string representation.

HRESULT	tfParticleList_fromString (struct tfParticleListHandle handle, const char str)
	Create from a JSON string representation.

HRESULT	tfParticleTypeList_init (struct tfParticleTypeListHandle *handle)
	Initialize an empty instance.

HRESULT	tfParticleTypeList_initP (struct tfParticleTypeListHandle handle, struct tfParticleTypeHandle *parts, unsigned int numParts)
	Initialize an instance with an array of particle types.

HRESULT	tfParticleTypeList_initI (struct tfParticleTypeListHandle handle, int parts, unsigned int numParts)
	Initialize an instance with an array of particle type ids.

HRESULT	tfParticleTypeList_copy (struct tfParticleTypeListHandle source, struct tfParticleTypeListHandle destination)
	Copy an instance.

HRESULT	tfParticleTypeList_destroy (struct tfParticleTypeListHandle *handle)
	Destroy an instance.

HRESULT	tfParticleTypeList_getIds (struct tfParticleTypeListHandle handle, int *parts)
	Get the particle type ids in the list.

HRESULT	tfParticleTypeList_getNumParts (struct tfParticleTypeListHandle handle, unsigned int numParts)
	Get the number of particle types.

HRESULT	tfParticleTypeList_free (struct tfParticleTypeListHandle *handle)
	Free the memory associated with the list.

HRESULT	tfParticleTypeList_insertI (struct tfParticleTypeListHandle handle, int item, unsigned int index)
	Insert the given id into the list, returns the index of the item.

HRESULT	tfParticleTypeList_insertP (struct tfParticleTypeListHandle handle, struct tfParticleTypeHandle ptype, unsigned int *index)
	Inserts the given particle type into the list, returns the index of the particle.

HRESULT	tfParticleTypeList_remove (struct tfParticleTypeListHandle *handle, int id)
	Looks for the item with the given id and deletes it from the list.

HRESULT	tfParticleTypeList_extend (struct tfParticleTypeListHandle handle, struct tfParticleTypeListHandle other)
	inserts the contents of another list

HRESULT	tfParticleTypeList_hasId (struct tfParticleTypeListHandle handle, int pid, bool result)
	Test whether the list has an id.

HRESULT	tfParticleTypeList_hasType (struct tfParticleTypeListHandle handle, struct tfParticleTypeHandle ptype, bool *result)
	Test whether the list has a particle type.

HRESULT	tfParticleTypeList_hasPart (struct tfParticleTypeListHandle handle, struct tfParticleHandleHandle part, bool *result)
	Test whether the list has a particle.

HRESULT	tfParticleTypeList_item (struct tfParticleTypeListHandle handle, unsigned int i, struct tfParticleTypeHandle item)
	looks for the item at the given index and returns it if found, otherwise returns NULL

HRESULT	tfParticleTypeList_getAll (struct tfParticleTypeListHandle *handle)
	Initialize an instance populated with all current particles.

HRESULT	tfParticleTypeList_getVirial (struct tfParticleTypeListHandle handle, tfFloatP_t virial)
	Get the virial tensor of the particles.

HRESULT	tfParticleTypeList_getRadiusOfGyration (struct tfParticleTypeListHandle handle, tfFloatP_t rog)
	Get the radius of gyration of the particles.

HRESULT	tfParticleTypeList_getCenterOfMass (struct tfParticleTypeListHandle handle, tfFloatP_t *com)
	Get the center of mass of the particles.

HRESULT	tfParticleTypeList_getCentroid (struct tfParticleTypeListHandle handle, tfFloatP_t *cent)
	Get the centroid of the particles.

HRESULT	tfParticleTypeList_getMomentOfInertia (struct tfParticleTypeListHandle handle, tfFloatP_t *moi)
	Get the moment of inertia of the particles.

HRESULT	tfParticleTypeList_getPositions (struct tfParticleTypeListHandle handle, tfFloatP_t *positions)
	Get the particle positions.

HRESULT	tfParticleTypeList_getVelocities (struct tfParticleTypeListHandle handle, tfFloatP_t *velocities)
	Get the particle velocities.

HRESULT	tfParticleTypeList_getForces (struct tfParticleTypeListHandle handle, tfFloatP_t *forces)
	Get the forces acting on the particles.

HRESULT	tfParticleTypeList_sphericalPositions (struct tfParticleTypeListHandle handle, tfFloatP_t *coordinates)
	Get the spherical coordinates of each particle for a coordinate system at the center of the universe.

HRESULT	tfParticleTypeList_sphericalPositionsO (struct tfParticleTypeListHandle handle, tfFloatP_t origin, tfFloatP_t **coordinates)
	Get the spherical coordinates of each particle for a coordinate system with a specified origin.

HRESULT	tfParticleTypeList_getOwnsData (struct tfParticleTypeListHandle handle, bool result)
	Get whether the list owns its data.

HRESULT	tfParticleTypeList_setOwnsData (struct tfParticleTypeListHandle *handle, bool flag)
	Set whether the list owns its data.

HRESULT	tfParticleTypeList_getMutable (struct tfParticleTypeListHandle handle, bool result)
	Get whether the list is mutable.

HRESULT	tfParticleTypeList_setMutable (struct tfParticleTypeListHandle *handle, bool flag)
	Set whether the list is mutable.

HRESULT	tfParticleTypeList_getParticles (struct tfParticleTypeListHandle handle, struct tfParticleListHandle plist)
	Get a particle list populated with particles of all current particle types.

HRESULT	tfParticleTypeList_toString (struct tfParticleTypeListHandle handle, char str, unsigned int numChars)
	Get a JSON string representation.

HRESULT	tfParticleTypeList_fromString (struct tfParticleTypeListHandle handle, const char str)
	Create from a JSON string representation.

HRESULT	tfParticle_Verify ()
	Iterates over all parts, does a verify.

HRESULT	tfParticleType_FindFromName (struct tfParticleTypeHandle handle, const char name)
	Get a registered particle type by type name.

HRESULT	tfParticleType_getFromId (struct tfParticleTypeHandle *handle, unsigned int pid)
	Get a registered particle type by type id.

unsigned int *	tfParticle_Colors ()
	Get an array of available particle type colors.

Function Documentation

◆ tfParticle_Colors()

unsigned int * tfParticle_Colors ( )

Get an array of available particle type colors.

Returns: unsigned int *

◆ tfParticle_Verify()

HRESULT tfParticle_Verify ( )

Iterates over all parts, does a verify.

Returns: S_OK on success

◆ tfParticleDynamics_init()

HRESULT tfParticleDynamics_init ( struct tfParticleDynamicsEnumHandle * handle )

Initialize an instance.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleFlags_init()

HRESULT tfParticleFlags_init ( struct tfParticleFlagsHandle * handle )

Initialize an instance.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleHandle_become()

HRESULT tfParticleHandle_become	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleTypeHandle *	typeHandle )

Dynamically changes the type of an object. We can change the type of a ParticleType-derived object to anyther pre-existing ParticleType-derived type. What this means is that if we have an object of say type A, we can change it to another type, say B, and and all of the forces and processes that acted on objects of type A stip and the forces and processes defined for type B now take over.

Parameters

handle	populated handle
typeHandle	new particle type

Returns: S_OK on success

◆ tfParticleHandle_destroy()

HRESULT tfParticleHandle_destroy ( struct tfParticleHandleHandle * handle )

Destroys the handle instance.

Returns: S_OK on success

◆ tfParticleHandle_destroyParticle()

HRESULT tfParticleHandle_destroyParticle ( struct tfParticleHandleHandle * handle )

Destroys the particle, and removes it from inventory.

Subsequent references to a destroyed particle result in an error.

Parameters

handle

Returns: S_OK on success

◆ tfParticleHandle_distance()

HRESULT tfParticleHandle_distance	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleHandleHandle *	other,
		tfFloatP_t *	distance )

Calculates the distance to another particle.

Parameters

handle	populated handle
other	populated handle of another particle
distance	distance

Returns: S_OK on success

◆ tfParticleHandle_eq()

HRESULT tfParticleHandle_eq	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs == rhs

◆ tfParticleHandle_ge()

HRESULT tfParticleHandle_ge	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs >= rhs

◆ tfParticleHandle_getAge()

HRESULT tfParticleHandle_getAge	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	age )

Get the particle age.

Returns: S_OK on success

◆ tfParticleHandle_getBondedNeighbors()

HRESULT tfParticleHandle_getBondedNeighbors	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleHandleHandle **	neighbors,
		int *	numNeighbors )

Get a list of all bonded neighbors.

Parameters

handle	populated handle
neighbors	neighbors
numNeighbors	number of neighbors

Returns: S_OK on success

◆ tfParticleHandle_getClusterId()

HRESULT tfParticleHandle_getClusterId	(	struct tfParticleHandleHandle *	handle,
		int *	cid )

Get the particle cluster id. -1 if particle is not a cluster.

Returns: S_OK on success

◆ tfParticleHandle_getFlags()

HRESULT tfParticleHandle_getFlags	(	struct tfParticleHandleHandle *	handle,
		int *	flags )

Get the particle flags.

Returns: S_OK on success

◆ tfParticleHandle_getForce()

HRESULT tfParticleHandle_getForce	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t **	force )

Get the particle force.

Returns: S_OK on success

◆ tfParticleHandle_getForceInit()

HRESULT tfParticleHandle_getForceInit	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t **	force )

Get the particle initial force.

Returns: S_OK on success

◆ tfParticleHandle_getFrozen()

HRESULT tfParticleHandle_getFrozen	(	struct tfParticleHandleHandle *	handle,
		bool *	frozen )

Test whether the particle is frozen.

Returns: S_OK on success

◆ tfParticleHandle_getFrozenX()

HRESULT tfParticleHandle_getFrozenX	(	struct tfParticleHandleHandle *	handle,
		bool *	frozen )

Test whether the particle is frozen along the x-direction.

Returns: S_OK on success

◆ tfParticleHandle_getFrozenY()

HRESULT tfParticleHandle_getFrozenY	(	struct tfParticleHandleHandle *	handle,
		bool *	frozen )

Test whether the particle is frozen along the y-direction.

Returns: S_OK on success

◆ tfParticleHandle_getFrozenZ()

HRESULT tfParticleHandle_getFrozenZ	(	struct tfParticleHandleHandle *	handle,
		bool *	frozen )

Test whether the particle is frozen along the z-direction.

Returns: S_OK on success

◆ tfParticleHandle_getId()

HRESULT tfParticleHandle_getId	(	struct tfParticleHandleHandle *	handle,
		int *	pid )

Get the particle id.

Returns: S_OK on success

◆ tfParticleHandle_getMass()

HRESULT tfParticleHandle_getMass	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	mass )

Get the particle mass.

Returns: S_OK on success

◆ tfParticleHandle_getName()

HRESULT tfParticleHandle_getName	(	struct tfParticleHandleHandle *	handle,
		char **	name,
		unsigned int *	numChars )

Get the particle name.

Returns: S_OK on success

◆ tfParticleHandle_getName2()

HRESULT tfParticleHandle_getName2	(	struct tfParticleHandleHandle *	handle,
		char **	name,
		unsigned int *	numChars )

Get the particle second name.

Returns: S_OK on success

◆ tfParticleHandle_getPosition()

HRESULT tfParticleHandle_getPosition	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t **	position )

Get the particle position.

Returns: S_OK on success

◆ tfParticleHandle_getRadius()

HRESULT tfParticleHandle_getRadius	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	radius )

Get the particle radius.

Returns: S_OK on success

◆ tfParticleHandle_getSpecies()

HRESULT tfParticleHandle_getSpecies	(	struct tfParticleHandleHandle *	handle,
		struct tfStateStateVectorHandle *	svec )

Get the state vector. Fails if the particle does not have a state vector.

Returns: S_OK on success

◆ tfParticleHandle_getStyle()

HRESULT tfParticleHandle_getStyle	(	struct tfParticleHandleHandle *	handle,
		struct tfRenderingStyleHandle *	style )

Get the particle style. Fails if no style is set.

Parameters

handle	populated handle
style	handle to populate

Returns: S_OK on success

◆ tfParticleHandle_getType()

HRESULT tfParticleHandle_getType	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleTypeHandle *	typeHandle )

Gets the particle type of this handle.

Parameters

handle	populated handle
typeHandle	type handle to populate

Returns: S_OK on success

◆ tfParticleHandle_getTypeId()

HRESULT tfParticleHandle_getTypeId	(	struct tfParticleHandleHandle *	handle,
		int *	tid )

Get the particle type id.

Returns: S_OK on success

◆ tfParticleHandle_getVelocity()

HRESULT tfParticleHandle_getVelocity	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t **	velocity )

Get the particle velocity.

Returns: S_OK on success

◆ tfParticleHandle_gt()

HRESULT tfParticleHandle_gt	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs > rhs

◆ tfParticleHandle_hasSpecies()

HRESULT tfParticleHandle_hasSpecies	(	struct tfParticleHandleHandle *	handle,
		bool *	flag )

Test whether a particle has species.

Returns: S_OK on success

◆ tfParticleHandle_hasStyle()

HRESULT tfParticleHandle_hasStyle	(	struct tfParticleHandleHandle *	handle,
		bool *	hasStyle )

Test whether the particle has a style.

Parameters

handle	populated handle
hasStyle	flag signifying whether the particle has a style

Returns: S_OK on success

◆ tfParticleHandle_init()

HRESULT tfParticleHandle_init	(	struct tfParticleHandleHandle *	handle,
		unsigned int	pid )

Initialize an instance.

Parameters

handle	handle to populate
pid	particle id

Returns: S_OK on success

◆ tfParticleHandle_le()

HRESULT tfParticleHandle_le	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs <= rhs

◆ tfParticleHandle_lt()

HRESULT tfParticleHandle_lt	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs < rhs

◆ tfParticleHandle_ne()

HRESULT tfParticleHandle_ne	(	struct tfParticleHandleHandle *	lhs,
		struct tfParticleHandleHandle *	rhs,
		bool *	result )

Test whether lhs != rhs

◆ tfParticleHandle_neighborsD()

HRESULT tfParticleHandle_neighborsD	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t	distance,
		struct tfParticleHandleHandle **	neighbors,
		int *	numNeighbors )

Get the particles within a distance of a particle.

Parameters

handle	populated handle
distance	distance
neighbors	neighbors
numNeighbors	number of neighbors

Returns: S_OK on success

◆ tfParticleHandle_neighborsDT()

HRESULT tfParticleHandle_neighborsDT	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t	distance,
		struct tfParticleTypeHandle *	ptypes,
		int	numTypes,
		struct tfParticleHandleHandle **	neighbors,
		int *	numNeighbors )

Get the particles of a set of types within a distance of a particle.

Parameters

handle	populated handle
distance	distance
ptypes	particle types
numTypes	number of particle types
neighbors	neighbors
numNeighbors	number of neighbors

Returns: S_OK on success

◆ tfParticleHandle_neighborsT()

HRESULT tfParticleHandle_neighborsT	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleTypeHandle *	ptypes,
		int	numTypes,
		struct tfParticleHandleHandle **	neighbors,
		int *	numNeighbors )

Get the particles of a set of types within the global cutoff distance.

Parameters

handle	populated handle
ptypes	particle types
numTypes	number of particle types
neighbors	neighbors
numNeighbors	number of neighbors

Returns: S_OK on success

◆ tfParticleHandle_relativePosition()

HRESULT tfParticleHandle_relativePosition	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	origin,
		tfFloatP_t **	position )

Computes the relative position with respect to an origin while.

Parameters

handle	populated handle
origin	relative point
position	3-element allocated array

Returns: S_OK on success

◆ tfParticleHandle_setForceInit()

HRESULT tfParticleHandle_setForceInit	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	force )

Set the particle initial force.

Returns: S_OK on success

◆ tfParticleHandle_setFrozen()

HRESULT tfParticleHandle_setFrozen	(	struct tfParticleHandleHandle *	handle,
		bool	frozen )

Set whether the particle is frozen.

Returns: S_OK on success

◆ tfParticleHandle_setFrozenX()

HRESULT tfParticleHandle_setFrozenX	(	struct tfParticleHandleHandle *	handle,
		bool	frozen )

Set whether the particle is frozen along the x-direction.

Returns: S_OK on success

◆ tfParticleHandle_setFrozenY()

HRESULT tfParticleHandle_setFrozenY	(	struct tfParticleHandleHandle *	handle,
		bool	frozen )

Set whether the particle is frozen along the y-direction.

Returns: S_OK on success

◆ tfParticleHandle_setFrozenZ()

HRESULT tfParticleHandle_setFrozenZ	(	struct tfParticleHandleHandle *	handle,
		bool	frozen )

Set whether the particle is frozen along the z-direction.

Returns: S_OK on success

◆ tfParticleHandle_setMass()

HRESULT tfParticleHandle_setMass	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t	mass )

Set the particle mass.

Returns: S_OK on success

◆ tfParticleHandle_setPosition()

HRESULT tfParticleHandle_setPosition	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	position )

Set the particle position.

Returns: S_OK on success

◆ tfParticleHandle_setRadius()

HRESULT tfParticleHandle_setRadius	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t	radius )

Set the particle radius.

Returns: S_OK on success

◆ tfParticleHandle_setSpecies()

HRESULT tfParticleHandle_setSpecies	(	struct tfParticleHandleHandle *	handle,
		struct tfStateStateVectorHandle *	svec )

Set the state vector.

Returns: S_OK on success

◆ tfParticleHandle_setStyle()

HRESULT tfParticleHandle_setStyle	(	struct tfParticleHandleHandle *	handle,
		struct tfRenderingStyleHandle *	style )

Set the particle style.

Parameters

handle	populated handle
style	style

Returns: S_OK on success

◆ tfParticleHandle_setVelocity()

HRESULT tfParticleHandle_setVelocity	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	velocity )

Set the particle velocity.

Returns: S_OK on success

◆ tfParticleHandle_sphericalPosition()

HRESULT tfParticleHandle_sphericalPosition	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t **	position )

Calculates the particle's coordinates in spherical coordinates relative to the center of the universe.

Parameters

handle	populated handle
position	3-element allocated array

Returns: S_OK on success

◆ tfParticleHandle_sphericalPositionPoint()

HRESULT tfParticleHandle_sphericalPositionPoint	(	struct tfParticleHandleHandle *	handle,
		tfFloatP_t *	origin,
		tfFloatP_t **	position )

Calculates the particle's coordinates in spherical coordinates relative to a point.

Parameters

handle	populated handle
origin	relative point
position	3-element allocated array

Returns: S_OK on success

◆ tfParticleHandle_split()

HRESULT tfParticleHandle_split	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleHandleHandle *	newParticleHandle )

Splits a single particle into two.

The new particle is placed along a randomly selected orientation.

The two resulting particles have the same mass and volume.

If species are attached to the split particle, then the amount of species is allocated to the two resulting particles such that their species concentrations are the same as the split particle. Species are conserved.

The two resulting particles have the type of the split particle.

The two resulting particles are placed in contact.

The center of mass of the two resulting particles is the same as that of the split particle.

The combined mass and volume of the two resulting particles are the same as those of the split particle.

Parameters

handle	populated handle
newParticleHandle	new particle handle to populate

Returns: S_OK on success

◆ tfParticleHandle_splitTypes()

HRESULT tfParticleHandle_splitTypes	(	struct tfParticleHandleHandle *	handle,
		struct tfParticleHandleHandle *	newParticleHandle,
		struct tfParticleTypeHandle *	parentTypeHandle,
		struct tfParticleTypeHandle *	childTypeHandle )

Splits a single particle into two and optionally with different resulting particle types.

The new particle is placed along a randomly selected orientation.

The two resulting particles have the same mass and volume.

If species are attached to the split particle, then the amount of species is allocated to the two resulting particles such that their species concentrations are the same as the split particle. Species are conserved.

The two resulting particles have the type of the split particle unless otherwise specified.

The two resulting particles are placed in contact.

The center of mass of the two resulting particles is the same as that of the split particle.

The combined mass and volume of the two resulting particles are the same as those of the split particle.

Parameters

handle	populated handle
newParticleHandle	new particle handle to populate
parentTypeHandle	optional type of the split particle after the split (NULL specifies default)
childTypeHandle	optional type of the new particle (NULL specifies default)

Returns: S_OK on success

◆ tfParticleHandle_str()

HRESULT tfParticleHandle_str	(	struct tfParticleHandleHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a summary string of the particle.

Parameters

handle	populated handle
str	array to populate
numChars	number of array characters

Returns: S_OK on success

◆ tfParticleHandle_toCluster()

HRESULT tfParticleHandle_toCluster	(	struct tfParticleHandleHandle *	handle,
		struct tfClusterParticleHandleHandle *	chandle )

Convert the particle to a cluster; fails if particle is not a cluster.

Returns: S_OK on success

◆ tfParticleHandle_toString()

HRESULT tfParticleHandle_toString	(	struct tfParticleHandleHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

handle	populated handle
str	string representation; can be used as an argument in a type particle factory
numChars	number of characters of string representation

Returns: S_OK on success

◆ tfParticleList_copy()

HRESULT tfParticleList_copy	(	struct tfParticleListHandle *	source,
		struct tfParticleListHandle *	destination )

Copy an instance.

Parameters

source	list to copy
destination	handle to populate

Returns: S_OK on success

◆ tfParticleList_destroy()

HRESULT tfParticleList_destroy ( struct tfParticleListHandle * handle )

Destroy an instance.

Parameters

handle populated handle

Returns: S_OK on success

◆ tfParticleList_extend()

HRESULT tfParticleList_extend	(	struct tfParticleListHandle *	handle,
		struct tfParticleListHandle *	other )

inserts the contents of another list

Parameters

handle	populated handle
other	another list

Returns: S_OK on success

◆ tfParticleList_free()

HRESULT tfParticleList_free ( struct tfParticleListHandle * handle )

Free the memory associated with the parts list.

Parameters

handle populated handle

Returns: S_OK on success

◆ tfParticleList_fromString()

HRESULT tfParticleList_fromString	(	struct tfParticleListHandle *	handle,
		const char *	str )

Create from a JSON string representation.

Returns: S_OK on success

◆ tfParticleList_getAll()

HRESULT tfParticleList_getAll ( struct tfParticleListHandle * handle )

Initialize an instance populated with all current particles.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleList_getCenterOfMass()

HRESULT tfParticleList_getCenterOfMass	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	com )

Get the center of mass of the particles.

Parameters

handle	populated handle
com	3-element allocated array, center of mass

Returns: S_OK on success

◆ tfParticleList_getCentroid()

HRESULT tfParticleList_getCentroid	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	cent )

Get the centroid of the particles.

Parameters

handle	populated handle
cent	3-element allocated array, centroid

Returns: S_OK on success

◆ tfParticleList_getForces()

HRESULT tfParticleList_getForces	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	forces )

Get the forces acting on the particles.

Parameters

handle	populated handle
forces	array of 3-element arrays, forces; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleList_getIds()

HRESULT tfParticleList_getIds	(	struct tfParticleListHandle *	handle,
		int **	parts )

Get the particle ids in the list.

Parameters

handle	populated handle
parts	particle id array

Returns: S_OK on success

◆ tfParticleList_getMomentOfInertia()

HRESULT tfParticleList_getMomentOfInertia	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	moi )

Get the moment of inertia of the particles.

Parameters

handle	populated handle
moi	9-element allocated array, moment of inertia

Returns: S_OK on success

◆ tfParticleList_getMutable()

HRESULT tfParticleList_getMutable	(	struct tfParticleListHandle *	handle,
		bool *	result )

Get whether the list is mutable.

Parameters

handle	populated handle
result	flag signifying whether the list is mutable

◆ tfParticleList_getNumParts()

HRESULT tfParticleList_getNumParts	(	struct tfParticleListHandle *	handle,
		unsigned int *	numParts )

Get the number of particles.

Parameters

handle	populated handle
numParts	number of particles

Returns: S_OK on success

◆ tfParticleList_getOwnsData()

HRESULT tfParticleList_getOwnsData	(	struct tfParticleListHandle *	handle,
		bool *	result )

Get whether the list owns its data.

Parameters

handle	populated handle
result	flag signifying whether the list owns its data

◆ tfParticleList_getPositions()

HRESULT tfParticleList_getPositions	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	positions )

Get the particle positions.

Parameters

handle	populated handle
positions	array of 3-element arrays, positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleList_getRadiusOfGyration()

HRESULT tfParticleList_getRadiusOfGyration	(	struct tfParticleListHandle *	handle,
		tfFloatP_t *	rog )

Get the radius of gyration of the particles.

Parameters

handle	populated handle
rog	radius of gyration

Returns: S_OK on success

◆ tfParticleList_getVelocities()

HRESULT tfParticleList_getVelocities	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	velocities )

Get the particle velocities.

Parameters

handle	populated handle
velocities	array of 3-element arrays, velocities; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleList_getVirial()

HRESULT tfParticleList_getVirial	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	virial )

Get the virial tensor of the particles.

Parameters

handle	populated handle
virial	9-element allocated array, virial tensor

Returns: S_OK on success

◆ tfParticleList_hasId()

HRESULT tfParticleList_hasId	(	struct tfParticleListHandle *	handle,
		int	pid,
		bool *	result )

Test whether the list has an id.

Parameters

handle	populated handle
pid	id to test
result	result of test

Returns: S_OK on success

◆ tfParticleList_hasPart()

HRESULT tfParticleList_hasPart	(	struct tfParticleListHandle *	handle,
		struct tfParticleHandleHandle *	part,
		bool *	result )

Test whether the list has a particle.

Parameters

handle	populated handle
part	particle to test
result	result of test

Returns: S_OK on success

◆ tfParticleList_init()

HRESULT tfParticleList_init ( struct tfParticleListHandle * handle )

Initialize an empty instance.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleList_initI()

HRESULT tfParticleList_initI	(	struct tfParticleListHandle *	handle,
		int *	parts,
		unsigned int	numParts )

Initialize an instance with an array of particle ids.

Parameters

handle	handle to populate
parts	particle ids to put in the list
numParts	number of particle ids

Returns: S_OK on success

◆ tfParticleList_initP()

HRESULT tfParticleList_initP	(	struct tfParticleListHandle *	handle,
		struct tfParticleHandleHandle **	particles,
		unsigned int	numParts )

Initialize an instance with an array of particles.

Parameters

handle	handle to populate
particles	particles to put in the list
numParts	number of particles

Returns: S_OK on success

◆ tfParticleList_insertI()

HRESULT tfParticleList_insertI	(	struct tfParticleListHandle *	handle,
		int	item,
		unsigned int *	index )

Insert the given id into the list, returns the index of the item.

Parameters

handle	populated handle
item	id to insert
index	index of the particle

Returns: S_OK on success

◆ tfParticleList_insertP()

HRESULT tfParticleList_insertP	(	struct tfParticleListHandle *	handle,
		struct tfParticleHandleHandle *	particle,
		unsigned int *	index )

Inserts the given particle into the list, returns the index of the particle.

Parameters

handle	populated handle
particle	particle to insert
index	index of the particle

Returns: S_OK on success

◆ tfParticleList_item()

HRESULT tfParticleList_item	(	struct tfParticleListHandle *	handle,
		unsigned int	i,
		struct tfParticleHandleHandle *	item )

looks for the item at the given index and returns it if found, otherwise returns NULL

Parameters

handle	populated handle
i	index of lookup
item	returned item if found

Returns: S_OK on success

◆ tfParticleList_remove()

HRESULT tfParticleList_remove	(	struct tfParticleListHandle *	handle,
		int	id )

Looks for the item with the given id and deletes it from the list.

Parameters

handle	populated handle
id	id to remove

Returns: S_OK on success

◆ tfParticleList_setMutable()

HRESULT tfParticleList_setMutable	(	struct tfParticleListHandle *	handle,
		bool	flag )

Set whether the list is mutable.

Parameters

handle	populated handle
flag	flag signifying whether the list is mutable

◆ tfParticleList_setOwnsData()

HRESULT tfParticleList_setOwnsData	(	struct tfParticleListHandle *	handle,
		bool	flag )

Set whether the list owns its data.

Parameters

handle	populated handle
flag	flag signifying whether the list owns its data

◆ tfParticleList_sphericalPositions()

HRESULT tfParticleList_sphericalPositions	(	struct tfParticleListHandle *	handle,
		tfFloatP_t **	coordinates )

Get the spherical coordinates of each particle for a coordinate system at the center of the universe.

Parameters

handle	populated handle
coordinates	array of 3-element arrays, spherical positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleList_sphericalPositionsO()

HRESULT tfParticleList_sphericalPositionsO	(	struct tfParticleListHandle *	handle,
		tfFloatP_t *	origin,
		tfFloatP_t **	coordinates )

Get the spherical coordinates of each particle for a coordinate system with a specified origin.

Parameters

handle	populated handle
origin	optional origin of coordinates; default is center of universe
coordinates	array of 3-element arrays, spherical positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleList_toString()

HRESULT tfParticleList_toString	(	struct tfParticleListHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

handle	populated handle
str	string representation; can be used as an argument in a type particle factory
numChars	number of characters of string representation

Returns: S_OK on success

◆ tfParticleType_createParticle()

HRESULT tfParticleType_createParticle	(	struct tfParticleTypeHandle *	handle,
		int *	pid,
		tfFloatP_t *	position,
		tfFloatP_t *	velocity )

Particle constructor.

Parameters

handle	populated handle
pid	id of created particle
position	pointer to 3-element array, or NULL for a random position
velocity	pointer to 3-element array, or NULL for a random velocity

Returns: S_OK on success

◆ tfParticleType_createParticleS()

HRESULT tfParticleType_createParticleS	(	struct tfParticleTypeHandle *	handle,
		int *	pid,
		const char *	str )

Particle constructor.

Parameters

handle	populated handle
pid	id of created particle
str	JSON string defining a particle

Returns: S_OK on success

◆ tfParticleType_eq()

HRESULT tfParticleType_eq	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs == rhs

◆ tfParticleType_factory()

HRESULT tfParticleType_factory	(	struct tfParticleTypeHandle *	handle,
		int **	pids,
		unsigned int	nr_parts,
		tfFloatP_t *	positions,
		tfFloatP_t *	velocities )

Particle factory constructor, for making lots of particles quickly.

At minimum, arguments must specify the number of particles to create, whether specified explicitly or through one or more vector arguments.

Parameters

handle	populated handle
pids	ids of created particle, optional
nr_parts	number of particles to create
positions	initial particle positions, optional
velocities	initial particle velocities, optional

Returns: S_OK on success

◆ tfParticleType_FindFromName()

HRESULT tfParticleType_FindFromName	(	struct tfParticleTypeHandle *	handle,
		const char *	name )

Get a registered particle type by type name.

Parameters

handle	handle to populate
name	name of particle type

Returns: S_OK on success

◆ tfParticleType_fromString()

HRESULT tfParticleType_fromString	(	struct tfParticleTypeHandle *	handle,
		const char *	str )

Create from a JSON string representation.

The returned type is automatically registered with the engine.

Returns: S_OK on success

◆ tfParticleType_ge()

HRESULT tfParticleType_ge	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs >= rhs

◆ tfParticleType_getDynamics()

HRESULT tfParticleType_getDynamics	(	struct tfParticleTypeHandle *	handle,
		unsigned char *	dynamics )

Get the default dynamics of particles of this type.

Returns: S_OK on success

◆ tfParticleType_getFromId()

HRESULT tfParticleType_getFromId	(	struct tfParticleTypeHandle *	handle,
		unsigned int	pid )

Get a registered particle type by type id.

Parameters

handle	handle to populate
pid	id of type

Returns: S_OK on success

◆ tfParticleType_getFrozen()

HRESULT tfParticleType_getFrozen	(	struct tfParticleTypeHandle *	handle,
		bool *	frozen )

Test whether this type is frozen.

Returns: S_OK on success

◆ tfParticleType_getFrozenX()

HRESULT tfParticleType_getFrozenX	(	struct tfParticleTypeHandle *	handle,
		bool *	frozen )

Test whether this type is frozen along the x-direction.

Returns: S_OK on success

◆ tfParticleType_getFrozenY()

HRESULT tfParticleType_getFrozenY	(	struct tfParticleTypeHandle *	handle,
		bool *	frozen )

Test whether this type is frozen along the y-direction.

Returns: S_OK on success

◆ tfParticleType_getFrozenZ()

HRESULT tfParticleType_getFrozenZ	(	struct tfParticleTypeHandle *	handle,
		bool *	frozen )

Test whether this type is frozen along the z-direction.

Returns: S_OK on success

◆ tfParticleType_getId()

HRESULT tfParticleType_getId	(	struct tfParticleTypeHandle *	handle,
		int *	id )

Get the type id. -1 if not registered.

Parameters

handle	populated handle
id	type id

Returns: S_OK on success

◆ tfParticleType_getKineticEnergy()

HRESULT tfParticleType_getKineticEnergy	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	kinetic_energy )

Get the kinetic energy of all particles of this type.

Returns: S_OK on success

◆ tfParticleType_getMass()

HRESULT tfParticleType_getMass	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	mass )

Get the type mass.

Returns: S_OK on success

◆ tfParticleType_getMinimumRadius()

HRESULT tfParticleType_getMinimumRadius	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	minimum_radius )

Get the default minimum radius of this type.

If a split event occurs, resulting particles will have a radius at least as great as this value.

Returns: S_OK on success

◆ tfParticleType_getName()

HRESULT tfParticleType_getName	(	struct tfParticleTypeHandle *	handle,
		char **	name,
		unsigned int *	numChars )

Get the type name.

Parameters

handle	populated handle
name	type name
numChars	number of characters

Returns: S_OK on success

◆ tfParticleType_getNumParts()

HRESULT tfParticleType_getNumParts	(	struct tfParticleTypeHandle *	handle,
		int *	numParts )

Get the number of particles that are a member of this type.

Parameters

handle	populated handle
numParts	number of particles

Returns: S_OK on success

◆ tfParticleType_getParticle()

HRESULT tfParticleType_getParticle	(	struct tfParticleTypeHandle *	handle,
		int	i,
		struct tfParticleHandleHandle *	phandle )

Get the i'th particle that's a member of this type.

Parameters

handle	populated handle
i	index of particle to get
phandle	particle handle to populate

Returns: S_OK on success

◆ tfParticleType_getParticleFlags()

HRESULT tfParticleType_getParticleFlags	(	struct tfParticleTypeHandle *	handle,
		unsigned int *	flags )

Get the particle flags.

Returns: S_OK on success

◆ tfParticleType_getPotentialEnergy()

HRESULT tfParticleType_getPotentialEnergy	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	potential_energy )

Get the potential energy of all particles of this type.

Returns: S_OK on success

◆ tfParticleType_getRadius()

HRESULT tfParticleType_getRadius	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	radius )

Get the type radius.

Returns: S_OK on success

◆ tfParticleType_getSpecies()

HRESULT tfParticleType_getSpecies	(	struct tfParticleTypeHandle *	handle,
		struct tfStateSpeciesListHandle *	slist )

Get the type species. Fails if the type does not have species.

Parameters

handle	populated handle
slist	species list

Returns: S_OK on success

◆ tfParticleType_getStyle()

HRESULT tfParticleType_getStyle	(	struct tfParticleTypeHandle *	handle,
		struct tfRenderingStyleHandle *	style )

Get the type style.

Parameters

handle	populated handle
style	handle to populate

Returns: S_OK on success

◆ tfParticleType_getTargetEnergy()

HRESULT tfParticleType_getTargetEnergy	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	target_energy )

Get the target energy of all particles of this type.

Returns: S_OK on success

◆ tfParticleType_getTargetTemperature()

HRESULT tfParticleType_getTargetTemperature	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	temperature )

Get the target temperature of this type.

Returns: S_OK on success

◆ tfParticleType_getTemperature()

HRESULT tfParticleType_getTemperature	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t *	temperature )

Get the temperature of this type.

Returns: S_OK on success

◆ tfParticleType_getTypeFlags()

HRESULT tfParticleType_getTypeFlags	(	struct tfParticleTypeHandle *	handle,
		unsigned int *	flags )

Get the type flags.

Returns: S_OK on success

◆ tfParticleType_gt()

HRESULT tfParticleType_gt	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs > rhs

◆ tfParticleType_hasPart()

HRESULT tfParticleType_hasPart	(	struct tfParticleTypeHandle *	handle,
		struct tfParticleHandleHandle *	part,
		bool *	result )

Test whether the type has a particle.

Parameters

handle	populated handle
part	particle to test
result	result of test

Returns: S_OK on success

◆ tfParticleType_hasPartId()

HRESULT tfParticleType_hasPartId	(	struct tfParticleTypeHandle *	handle,
		int	pid,
		bool *	result )

Test whether the type has an id.

Parameters

handle	populated handle
pid	particle id to test
result	result of test

Returns: S_OK on success

◆ tfParticleType_hasSpecies()

HRESULT tfParticleType_hasSpecies	(	struct tfParticleTypeHandle *	handle,
		bool *	flag )

Test whether the type has species.

Parameters

handle	populated handle
flag	flag signifying whether the type has species

Returns: S_OK on success

◆ tfParticleType_init()

HRESULT tfParticleType_init ( struct tfParticleTypeHandle * handle )

Initialize an instance.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleType_initD()

HRESULT tfParticleType_initD	(	struct tfParticleTypeHandle *	handle,
		struct tfParticleTypeSpec	pdef )

Initialize an instance from a definition.

Parameters

handle	handle to populate
pdef	definition

Returns: S_OK on success

◆ tfParticleType_isCluster()

HRESULT tfParticleType_isCluster	(	struct tfParticleTypeHandle *	handle,
		bool *	isCluster )

Test whether this type is a cluster type.

Returns: S_OK on success

◆ tfParticleType_isRegistered()

HRESULT tfParticleType_isRegistered	(	struct tfParticleTypeHandle *	handle,
		bool *	isRegistered )

Tests whether this type is registered.

Returns: S_OK on success

◆ tfParticleType_le()

HRESULT tfParticleType_le	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs <= rhs

◆ tfParticleType_lt()

HRESULT tfParticleType_lt	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs < rhs

◆ tfParticleType_ne()

HRESULT tfParticleType_ne	(	struct tfParticleTypeHandle *	lhs,
		struct tfParticleTypeHandle *	rhs,
		bool *	result )

Test whether lhs != rhs

◆ tfParticleType_newType()

HRESULT tfParticleType_newType	(	struct tfParticleTypeHandle *	handle,
		const char *	_name,
		struct tfParticleTypeHandle *	newTypehandle )

Particle type constructor.

New type is constructed from the definition of the calling type.

Parameters

handle	populated handle
_name	name of the new type
newTypehandle	handle to populate with new type

Returns: S_OK on success

◆ tfParticleType_registerType()

HRESULT tfParticleType_registerType ( struct tfParticleTypeHandle * handle )

Registers a type with the engine.

Returns: S_OK on success

◆ tfParticleType_setDynamics()

HRESULT tfParticleType_setDynamics	(	struct tfParticleTypeHandle *	handle,
		unsigned char	dynamics )

Set the default dynamics of particles of this type.

Returns: S_OK on success

◆ tfParticleType_setFrozen()

HRESULT tfParticleType_setFrozen	(	struct tfParticleTypeHandle *	handle,
		bool	frozen )

Set whether this type is frozen.

Returns: S_OK on success

◆ tfParticleType_setFrozenX()

HRESULT tfParticleType_setFrozenX	(	struct tfParticleTypeHandle *	handle,
		bool	frozen )

Set whether this type is frozen along the x-direction.

Returns: S_OK on success

◆ tfParticleType_setFrozenY()

HRESULT tfParticleType_setFrozenY	(	struct tfParticleTypeHandle *	handle,
		bool	frozen )

Set whether this type is frozen along the y-direction.

Returns: S_OK on success

◆ tfParticleType_setFrozenZ()

HRESULT tfParticleType_setFrozenZ	(	struct tfParticleTypeHandle *	handle,
		bool	frozen )

Set whether this type is frozen along the z-direction.

Returns: S_OK on success

◆ tfParticleType_setMass()

HRESULT tfParticleType_setMass	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t	mass )

Set the type mass.

Returns: S_OK on success

◆ tfParticleType_setMinimumRadius()

HRESULT tfParticleType_setMinimumRadius	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t	minimum_radius )

Set the default minimum radius of this type.

If a split event occurs, resulting particles will have a radius at least as great as this value.

Returns: S_OK on success

◆ tfParticleType_setName()

HRESULT tfParticleType_setName	(	struct tfParticleTypeHandle *	handle,
		const char *	name )

Set the type name. Throws an error if the type is already registered.

Parameters

handle	populated handle
name	type name

Returns: S_OK on success

◆ tfParticleType_setParticleFlags()

HRESULT tfParticleType_setParticleFlags	(	struct tfParticleTypeHandle *	handle,
		unsigned int	flags )

Set the particle flags.

Returns: S_OK on success

◆ tfParticleType_setRadius()

HRESULT tfParticleType_setRadius	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t	radius )

Set the type radius.

Returns: S_OK on success

◆ tfParticleType_setSpecies()

HRESULT tfParticleType_setSpecies	(	struct tfParticleTypeHandle *	handle,
		struct tfStateSpeciesListHandle *	slist )

Set the type species.

Parameters

handle	populated handle
slist	species list

Returns: S_OK on success

◆ tfParticleType_setStyle()

HRESULT tfParticleType_setStyle	(	struct tfParticleTypeHandle *	handle,
		struct tfRenderingStyleHandle *	style )

Set the type style.

Parameters

handle	populated handle
style	style

Returns: S_OK on success

◆ tfParticleType_setTargetEnergy()

HRESULT tfParticleType_setTargetEnergy	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t	target_energy )

Set the target energy of all particles of this type.

Returns: S_OK on success

◆ tfParticleType_setTargetTemperature()

HRESULT tfParticleType_setTargetTemperature	(	struct tfParticleTypeHandle *	handle,
		tfFloatP_t	temperature )

Set the target temperature of this type.

Returns: S_OK on success

◆ tfParticleType_setTypeFlags()

HRESULT tfParticleType_setTypeFlags	(	struct tfParticleTypeHandle *	handle,
		unsigned int	flags )

Set the type flags.

Returns: S_OK on success

◆ tfParticleType_str()

HRESULT tfParticleType_str	(	struct tfParticleTypeHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a summary string of the type.

Parameters

handle	populated handle
str	array to populate
numChars	number of array characters

Returns: S_OK on success

◆ tfParticleType_toCluster()

HRESULT tfParticleType_toCluster	(	struct tfParticleTypeHandle *	handle,
		struct tfClusterParticleTypeHandle *	chandle )

Convert the type to a cluster; fails if the type is not a cluster.

Returns: S_OK on success

◆ tfParticleType_toString()

HRESULT tfParticleType_toString	(	struct tfParticleTypeHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

handle	populated handle
str	string representation
numChars	number of characters of string representation

Returns: S_OK on success

◆ tfParticleTypeList_copy()

HRESULT tfParticleTypeList_copy	(	struct tfParticleTypeListHandle *	source,
		struct tfParticleTypeListHandle *	destination )

Copy an instance.

Parameters

source	list to copy
destination	handle to populate

Returns: S_OK on success

◆ tfParticleTypeList_destroy()

HRESULT tfParticleTypeList_destroy ( struct tfParticleTypeListHandle * handle )

Destroy an instance.

Parameters

handle populated handle

Returns: S_OK on success

◆ tfParticleTypeList_extend()

HRESULT tfParticleTypeList_extend	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleTypeListHandle *	other )

inserts the contents of another list

Parameters

handle	populated handle
other	another list

Returns: S_OK on success

◆ tfParticleTypeList_free()

HRESULT tfParticleTypeList_free ( struct tfParticleTypeListHandle * handle )

Free the memory associated with the list.

Parameters

handle populated handle

Returns: S_OK on success

◆ tfParticleTypeList_fromString()

HRESULT tfParticleTypeList_fromString	(	struct tfParticleTypeListHandle *	handle,
		const char *	str )

Create from a JSON string representation.

Returns: S_OK on success

◆ tfParticleTypeList_getAll()

HRESULT tfParticleTypeList_getAll ( struct tfParticleTypeListHandle * handle )

Initialize an instance populated with all current particles.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleTypeList_getCenterOfMass()

HRESULT tfParticleTypeList_getCenterOfMass	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	com )

Get the center of mass of the particles.

Parameters

handle	populated handle
com	3-element allocated array, center of mass

Returns: S_OK on success

◆ tfParticleTypeList_getCentroid()

HRESULT tfParticleTypeList_getCentroid	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	cent )

Get the centroid of the particles.

Parameters

handle	populated handle
cent	3-element allocated array, centroid

Returns: S_OK on success

◆ tfParticleTypeList_getForces()

HRESULT tfParticleTypeList_getForces	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	forces )

Get the forces acting on the particles.

Parameters

handle	populated handle
forces	array of 3-element arrays, forces; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleTypeList_getIds()

HRESULT tfParticleTypeList_getIds	(	struct tfParticleTypeListHandle *	handle,
		int **	parts )

Get the particle type ids in the list.

Parameters

handle	populated handle
parts	particle type id array

Returns: S_OK on success

◆ tfParticleTypeList_getMomentOfInertia()

HRESULT tfParticleTypeList_getMomentOfInertia	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	moi )

Get the moment of inertia of the particles.

Parameters

handle	populated handle
moi	9-element allocated array, moment of inertia

Returns: S_OK on success

◆ tfParticleTypeList_getMutable()

HRESULT tfParticleTypeList_getMutable	(	struct tfParticleTypeListHandle *	handle,
		bool *	result )

Get whether the list is mutable.

Parameters

handle	populated handle
result	flag signifying whether the list is mutable

◆ tfParticleTypeList_getNumParts()

HRESULT tfParticleTypeList_getNumParts	(	struct tfParticleTypeListHandle *	handle,
		unsigned int *	numParts )

Get the number of particle types.

Parameters

handle	populated handle
numParts	number of particle types

Returns: S_OK on success

◆ tfParticleTypeList_getOwnsData()

HRESULT tfParticleTypeList_getOwnsData	(	struct tfParticleTypeListHandle *	handle,
		bool *	result )

Get whether the list owns its data.

Parameters

handle	populated handle
result	flag signifying whether the list owns its data

◆ tfParticleTypeList_getParticles()

HRESULT tfParticleTypeList_getParticles	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleListHandle *	plist )

Get a particle list populated with particles of all current particle types.

Parameters

handle	populated handle
plist	handle to populate

Returns: S_OK on success

◆ tfParticleTypeList_getPositions()

HRESULT tfParticleTypeList_getPositions	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	positions )

Get the particle positions.

Parameters

handle	populated handle
positions	array of 3-element arrays, positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleTypeList_getRadiusOfGyration()

HRESULT tfParticleTypeList_getRadiusOfGyration	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t *	rog )

Get the radius of gyration of the particles.

Parameters

handle	populated handle
rog	radius of gyration

Returns: S_OK on success

◆ tfParticleTypeList_getVelocities()

HRESULT tfParticleTypeList_getVelocities	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	velocities )

Get the particle velocities.

Parameters

handle	populated handle
velocities	array of 3-element arrays, velocities; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleTypeList_getVirial()

HRESULT tfParticleTypeList_getVirial	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t *	virial )

Get the virial tensor of the particles.

Parameters

handle	populated handle
virial	9-element allocated array, virial tensor

Returns: S_OK on success

◆ tfParticleTypeList_hasId()

HRESULT tfParticleTypeList_hasId	(	struct tfParticleTypeListHandle *	handle,
		int	pid,
		bool *	result )

Test whether the list has an id.

Parameters

handle	populated handle
pid	id to test
result	result of test

Returns: S_OK on success

◆ tfParticleTypeList_hasPart()

HRESULT tfParticleTypeList_hasPart	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleHandleHandle *	part,
		bool *	result )

Test whether the list has a particle.

Parameters

handle	populated handle
part	particle to test
result	result of test

Returns: S_OK on success

◆ tfParticleTypeList_hasType()

HRESULT tfParticleTypeList_hasType	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleTypeHandle *	ptype,
		bool *	result )

Test whether the list has a particle type.

Parameters

handle	populated handle
ptype	type to test
result	result of test

Returns: S_OK on success

◆ tfParticleTypeList_init()

HRESULT tfParticleTypeList_init ( struct tfParticleTypeListHandle * handle )

Initialize an empty instance.

Parameters

handle handle to populate

Returns: S_OK on success

◆ tfParticleTypeList_initI()

HRESULT tfParticleTypeList_initI	(	struct tfParticleTypeListHandle *	handle,
		int *	parts,
		unsigned int	numParts )

Initialize an instance with an array of particle type ids.

Parameters

handle	handle to populate
parts	particle type ids to put in the list
numParts	number of particle type ids

Returns: S_OK on success

◆ tfParticleTypeList_initP()

HRESULT tfParticleTypeList_initP	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleTypeHandle **	parts,
		unsigned int	numParts )

Initialize an instance with an array of particle types.

Parameters

handle	handle to populate
parts	particle types to put in the list
numParts	number of particle types

Returns: S_OK on success

◆ tfParticleTypeList_insertI()

HRESULT tfParticleTypeList_insertI	(	struct tfParticleTypeListHandle *	handle,
		int	item,
		unsigned int *	index )

Insert the given id into the list, returns the index of the item.

Parameters

handle	populated handle
item	id to insert
index	index of the particle type

Returns: S_OK on success

◆ tfParticleTypeList_insertP()

HRESULT tfParticleTypeList_insertP	(	struct tfParticleTypeListHandle *	handle,
		struct tfParticleTypeHandle *	ptype,
		unsigned int *	index )

Inserts the given particle type into the list, returns the index of the particle.

Parameters

handle	populated handle
ptype	particle type to insert
index	index of the particle type

Returns: S_OK on success

◆ tfParticleTypeList_item()

HRESULT tfParticleTypeList_item	(	struct tfParticleTypeListHandle *	handle,
		unsigned int	i,
		struct tfParticleTypeHandle *	item )

looks for the item at the given index and returns it if found, otherwise returns NULL

Parameters

handle	populated handle
i	index of lookup
item	returned item if found

Returns: S_OK on success

◆ tfParticleTypeList_remove()

HRESULT tfParticleTypeList_remove	(	struct tfParticleTypeListHandle *	handle,
		int	id )

Looks for the item with the given id and deletes it from the list.

Parameters

handle	populated handle
id	id to remove

Returns: S_OK on success

◆ tfParticleTypeList_setMutable()

HRESULT tfParticleTypeList_setMutable	(	struct tfParticleTypeListHandle *	handle,
		bool	flag )

Set whether the list is mutable.

Parameters

handle	populated handle
flag	flag signifying whether the list is mutable

◆ tfParticleTypeList_setOwnsData()

HRESULT tfParticleTypeList_setOwnsData	(	struct tfParticleTypeListHandle *	handle,
		bool	flag )

Set whether the list owns its data.

Parameters

handle	populated handle
flag	flag signifying whether the list owns its data

◆ tfParticleTypeList_sphericalPositions()

HRESULT tfParticleTypeList_sphericalPositions	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t **	coordinates )

Get the spherical coordinates of each particle for a coordinate system at the center of the universe.

Parameters

handle	populated handle
coordinates	array of 3-element arrays, spherical positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleTypeList_sphericalPositionsO()

HRESULT tfParticleTypeList_sphericalPositionsO	(	struct tfParticleTypeListHandle *	handle,
		tfFloatP_t *	origin,
		tfFloatP_t **	coordinates )

Get the spherical coordinates of each particle for a coordinate system with a specified origin.

Parameters

handle	populated handle
origin	optional origin of coordinates; default is center of universe
coordinates	array of 3-element arrays, spherical positions; order is according to the ordering of the list

Returns: S_OK on success

◆ tfParticleTypeList_toString()

HRESULT tfParticleTypeList_toString	(	struct tfParticleTypeListHandle *	handle,
		char **	str,
		unsigned int *	numChars )

Get a JSON string representation.

Parameters

handle	populated handle
str	string representation; can be used as an argument in a type particle factory
numChars	number of characters of string representation

Returns: S_OK on success

Data Structures

Functions

Function Documentation

◆ tfParticle_Colors()

◆ tfParticle_Verify()

◆ tfParticleDynamics_init()

◆ tfParticleFlags_init()

◆ tfParticleHandle_become()

◆ tfParticleHandle_destroy()

◆ tfParticleHandle_destroyParticle()

◆ tfParticleHandle_distance()

◆ tfParticleHandle_eq()

◆ tfParticleHandle_ge()

◆ tfParticleHandle_getAge()

◆ tfParticleHandle_getBondedNeighbors()

◆ tfParticleHandle_getClusterId()

◆ tfParticleHandle_getFlags()

◆ tfParticleHandle_getForce()

◆ tfParticleHandle_getForceInit()

◆ tfParticleHandle_getFrozen()

◆ tfParticleHandle_getFrozenX()

◆ tfParticleHandle_getFrozenY()

◆ tfParticleHandle_getFrozenZ()

◆ tfParticleHandle_getId()

◆ tfParticleHandle_getMass()

◆ tfParticleHandle_getName()

◆ tfParticleHandle_getName2()

◆ tfParticleHandle_getPosition()

◆ tfParticleHandle_getRadius()

◆ tfParticleHandle_getSpecies()

◆ tfParticleHandle_getStyle()

◆ tfParticleHandle_getType()

◆ tfParticleHandle_getTypeId()

◆ tfParticleHandle_getVelocity()

◆ tfParticleHandle_gt()

◆ tfParticleHandle_hasSpecies()

◆ tfParticleHandle_hasStyle()

◆ tfParticleHandle_init()

◆ tfParticleHandle_le()

◆ tfParticleHandle_lt()

◆ tfParticleHandle_ne()

◆ tfParticleHandle_neighborsD()

◆ tfParticleHandle_neighborsDT()

◆ tfParticleHandle_neighborsT()

◆ tfParticleHandle_relativePosition()

◆ tfParticleHandle_setForceInit()

◆ tfParticleHandle_setFrozen()

◆ tfParticleHandle_setFrozenX()

◆ tfParticleHandle_setFrozenY()

◆ tfParticleHandle_setFrozenZ()

◆ tfParticleHandle_setMass()

◆ tfParticleHandle_setPosition()

◆ tfParticleHandle_setRadius()

◆ tfParticleHandle_setSpecies()

◆ tfParticleHandle_setStyle()

◆ tfParticleHandle_setVelocity()

◆ tfParticleHandle_sphericalPosition()

◆ tfParticleHandle_sphericalPositionPoint()

◆ tfParticleHandle_split()

◆ tfParticleHandle_splitTypes()

◆ tfParticleHandle_str()

◆ tfParticleHandle_toCluster()

◆ tfParticleHandle_toString()

◆ tfParticleList_copy()

◆ tfParticleList_destroy()

◆ tfParticleList_extend()

◆ tfParticleList_free()

◆ tfParticleList_fromString()

◆ tfParticleList_getAll()

◆ tfParticleList_getCenterOfMass()

◆ tfParticleList_getCentroid()

◆ tfParticleList_getForces()

◆ tfParticleList_getIds()

◆ tfParticleList_getMomentOfInertia()

◆ tfParticleList_getMutable()

◆ tfParticleList_getNumParts()

◆ tfParticleList_getOwnsData()

◆ tfParticleList_getPositions()

◆ tfParticleList_getRadiusOfGyration()

◆ tfParticleList_getVelocities()
